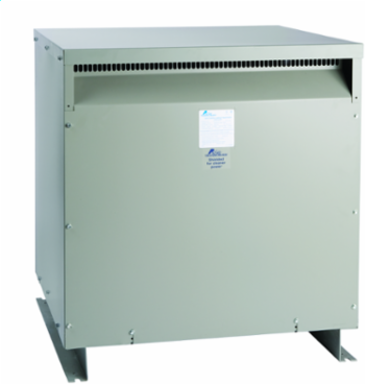

Acme Electric TP531233S Low Voltage Distribution Transformer 600V, 120/240V, 167kVA, 1050 lb
- MPN: TP531233S
- UPC: 047503007006
- PPN: HBL-TP531233S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 167kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
- Optional weather shield - WSA5
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 167.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 120/240 V
- Frequency Rating
- 60 Hz
- Length
- 35.5 in
- Primary Voltage
- 600 V
- UL Insulation Class
- 220°C
- Weight
- 1050 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503007006
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions35.5 in x 39.5 in x 45.6 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Height45.6 in
MountingFloor
Width39.5 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 2
Class CodeD10
Harmonization Code8504330040
Replaced Catalog NumberTI531233S
Electrostatic ShieldShielded
ConstructionVentilated
BOX SIZE(in)
NAICS Code335311
