Acme Electric

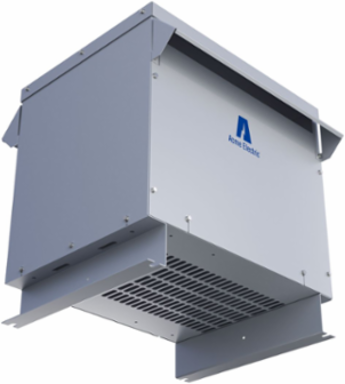

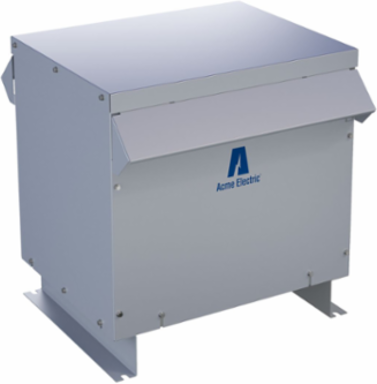

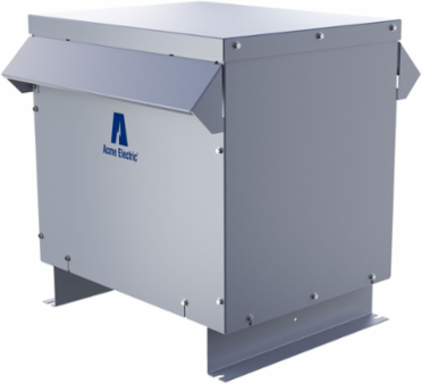

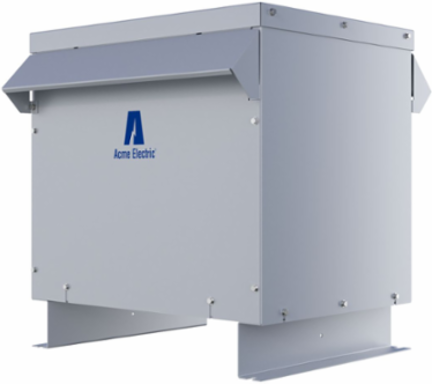

Acme Electric T3015K0013BS Low Voltage Distribution Transformer 15kVA 480/208Y/120V NEMA 3R 300 lb.

  • MPN: T3015K0013BS
  • UPC: 047503093801
  • PPN: HBL-T3015K0013BS
  • UNSPSC: 39121001
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Low Voltage Distribution Transformer Three Phase 480Δ - 208Y/120V, 15kVA, Shielded

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico
Efficiency97.89%
Length19.37 in
Weight300 lb.
Class CodeD10
Harmonization Code8504320000
Sub Class CodeD10D100
BOX SIZE(in)
NAICS Code3353111700
Dimensions19.37 in x 24.39 in x 25.5 in
Height25.5 in
Width24.39 in
Nema RatingNEMA 3R
Freight Class Code06342001
Image Actual Or RepresentativeA
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503093801
Low Voltage Distribution Transformer 15kVA 480/208Y/120V NEMA 3R 300 lb.
Low Voltage Distribution Transformer 15kVA 480/208Y/120V NEMA 3R 300 lb.
Low Voltage Distribution Transformer 15kVA 480/208Y/120V NEMA 3R 300 lb.
Low Voltage Distribution Transformer 15kVA 480/208Y/120V NEMA 3R 300 lb.
