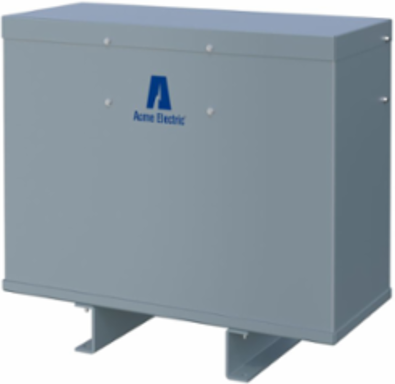

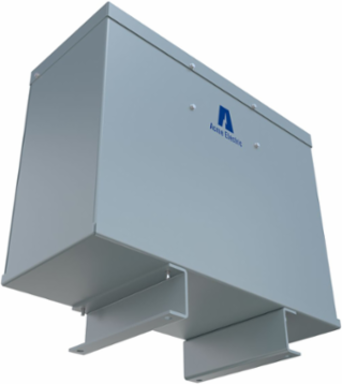

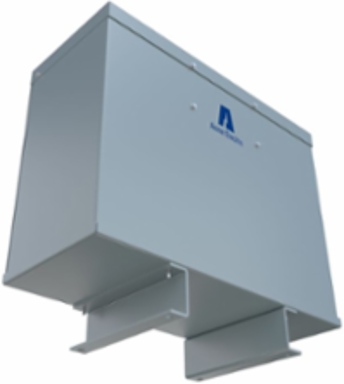

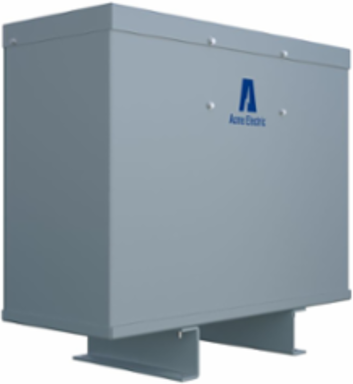

Acme Electric T3533411S Low Voltage Distribution Transformer 15kVA, 480V/240V/120V, 250 lb.
- MPN: T3533411S
- UPC: 047503733851
- PPN: HBL-T3533411S
- UNSPSC: 39121001
CAD
$3719.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 240Δ120V, 15kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 15.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 240D 120 V
- Frequency Rating
- 60 Hz
- Length
- 9.03 in
- Primary Voltage
- 480D V
- UL Insulation Class
- 180°C
- Weight
- 250 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503733851
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions9.03 in x 20.3 in x 18.86 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height18.86 in
MountingFloor
Width20.3 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE24.000x13.000x24.000 (in)
Pallet Height29.000 in
Pallet Weight1039.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
