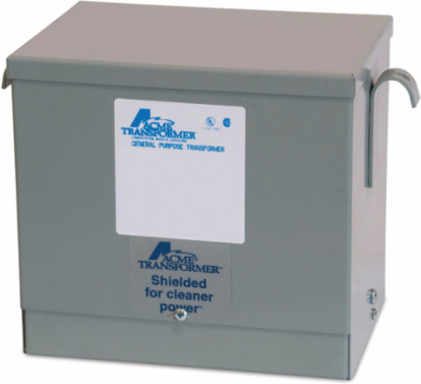

Low Voltage Distribution Transformer 3kVA 480V Primary 208Y/120V Secondary
Acme Electric

Acme Electric T2A533081S Low Voltage Distribution Transformer 3kVA 480V Primary 208Y/120V Secondary

  • MPN: T2A533081S
  • UPC: 047503733509
  • PPN: HBL-T2A533081S
  • UNSPSC: 39121001

CAD

$2329.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 3kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
CSA Standard
C22.2 No. 47
kVA
3.0
Product Category
Dry Type Distribution Transformer
Secondary Voltage
208Y/120 V
Frequency Rating
60 Hz
Length
7.47 in
Primary Voltage
480D V
UL Insulation Class
180°C
Weight
75 lb.
Mounting Type
Wall
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
R
Sub Class Code
D10D100
Winding Material
CU
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503733509
Pallet Length
40.000 in
Pallet Width
40.000 in
BNFC Taps2
Dimensions7.47 in x 12.37 in x 10.38 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height10.38 in
MountingWall
Width12.37 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE14.000x12.000x13.000 (in)
Pallet Height19.000 in
Pallet Weight670.000 lb.
NAICS Code335311

Certifications

Buy American Compliant
Contact Manufacturer

CAD$2329.52/ EA
