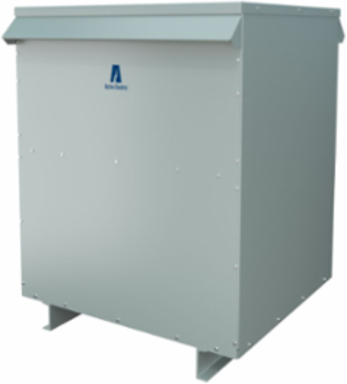

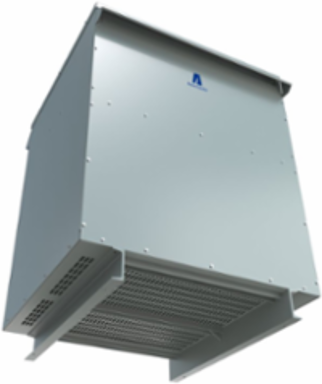

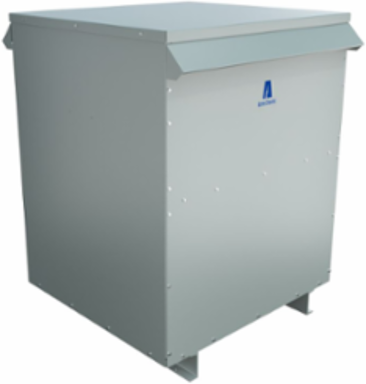

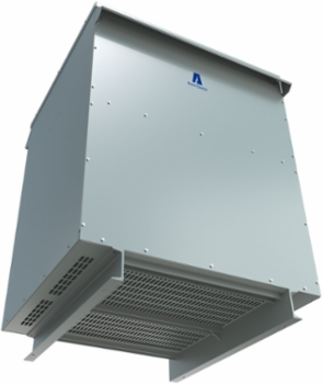

Acme Electric T3500K0013B Low Voltage Distribution Transformer, 500 kVA, 480V Primary, 208Y/120V Secondary, 45.6 Inch Width, 57.8 Inch Height
- MPN: T3500K0013B
- UPC: 047503092460
- PPN: HBL-T3500K0013B
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 500kVA
Features
- Quiet operation with sound levels below NEMA standards
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 500.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- Efficiency
- 99.14%
- Height
- 57.8 in
- Mounting
- Floor
- Width
- 45.6 in
- UL Standard
- UL 1561
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504330040
- Sub Class Code
- D10D100
- Construction
- Ventilated
- BOX SIZE
- 61.000x50.000x50.000 (in)
- Pallet Height
- 61.000 in
- Pallet Weight
- 2480.000 lb.
- NAICS Code
- 335311
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions41.5 in x 45.6 in x 57.8 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Frequency Rating60 Hz
Length41.5 in
Primary Voltage480D V
UL Insulation Class220°C
Weight2480 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503092460
Pallet Length50.000 in
Pallet Width50.000 in
