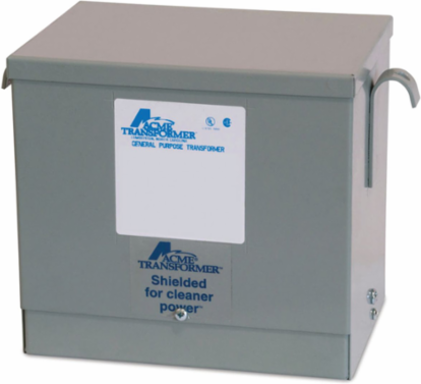

Low Voltage Distribution Transformer 600V 208Y/120V 9kVA NEMA 3R
Acme Electric

Acme Electric T2A793321S Low Voltage Distribution Transformer 600V 208Y/120V 9kVA NEMA 3R

  • MPN: T2A793321S
  • UPC: 047503722329
  • PPN: HBL-T2A793321S
  • UNSPSC: 39121001

CAD

$4756.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Low Voltage Distribution Transformer - Three Phase, 600Δ - 208Y/120V, 9kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
CSA Standard
C22.2 No. 47
kVA
9.0
Product Category
Dry Type Distribution Transformer
Secondary Voltage
208Y/120 V
Frequency Rating
60 Hz
Length
11.52 in
Primary Voltage
600D V
UL Insulation Class
180°C
Weight
180 lb.
Mounting Type
Wall
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
R
Sub Class Code
D10D100
Winding Material
AL
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503722329
Pallet Length
40.000 in
Pallet Width
40.000 in
BNFC Taps2
Dimensions11.52 in x 17.77 in x 14.03 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height14.03 in
MountingWall
Width17.77 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x15.000x18.000 (in)
Pallet Height23.000 in
Pallet Weight716.000 lb.
NAICS Code335311

Certifications

Buy American Compliant
Contact Manufacturer
