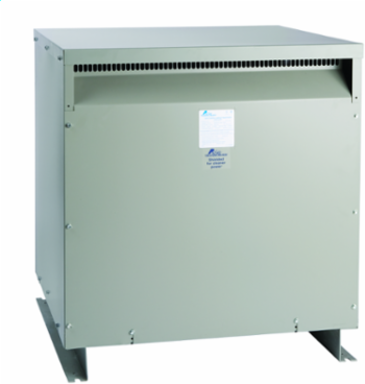

Acme Electric T2A527181 Low Voltage Distribution Transformer, 600/480V, 450/360kVA, 31.9 Inch Width, 750 lb.

MPN: T2A527181
UPC: 047503420010
PPN: HBL-T2A527181
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Three Phase, 600/480 - 480/380V, 450/360kVA, Autotransformer

Features

Quiet operation with sound levels below NEMA standards
Optional weather shield - WSA3

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
CSA Standard	C22.2 No. 47
kVA	450/360
Product Category	Dry Type Distribution Transformer
Secondary Voltage	480/380 V
Frequency Rating	50/60 Hz
Length	26.88 in
Primary Voltage	600/480 V
UL Insulation Class	220°C
Weight	750 lb.
Mounting Type	Floor
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	R
Sub Class Code	D10D100
Construction	Ventilated
BOX SIZE	49.000x45.000x43.000 (in)
Pallet Height	49.000 in
Pallet Weight	744.000 lb.
NAICS Code	335311

BNFC Taps	2
Dimensions	26.88 in x 31.9 in x 35.47 in
Max Temperature Rise	150 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	5.0%
Height	35.47 in
Mounting	Floor
Width	31.9 in
UL Standard	UL 1561
Material type	ZFIN
Nema Rating	NEMA 2
Class Code	D10
Harmonization Code	8504330040
Stock Indicator	N - Non-stock
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503420010
Pallet Length	45.000 in
Pallet Width	43.000 in
