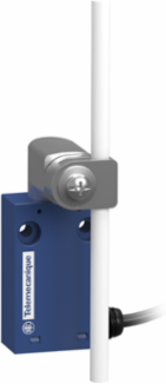

Telemecanique Sensors XCMH2159L1 Limit switch XCMH, plastic, plastic round rod, 1NC+1NO, snap action (XCMH2159L1)
- MPN: XCMH2159L1
- PPN: TES-XCMH2159L1
CAD
$72.32
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCMH, plastic, plastic round rod, 1NC+1NO, snap action (XCMH2159L1)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | By any moving part |
|---|---|
| Cable composition | 4 x 0.34 mm² |
| Contacts insulation form | Zb |
| Contact code designation | C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Electrical connection | Fixed cable |
|---|---|
| Wire insulation material | PvR |
| Positive opening | Without |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Miniature |
| Head type | Rotary head |
| Body material | Plastic |
| Fixing mode | By the body |
| Type of operator | Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm |
| Contacts type and composition | 1 NC + 1 NO |
| Series name | Standard format |
|---|---|
| Device short name | XCMH |
| Body type | Fixed |
| Material | Plastic |
| Head material | Zamak |
| Movement of operating head | Rotary |
| Type of approach | Lateral approach |
| Contact operation | Snap action |
Environment
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Electrical shock protection class | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Product certifications | CCC CSA UL |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK04 conforming to IEC 62262 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
