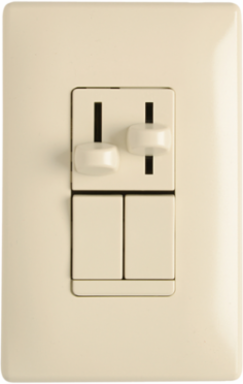

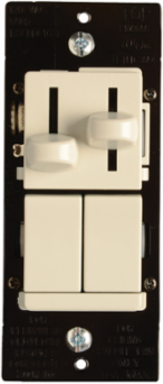

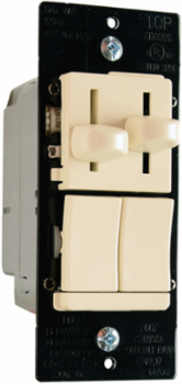

Pass & Seymour LSCLDC163PLA CFL/LED/Incandescent 3-Way Slide Dimmer with Fan Control, Light Almond
- MPN: LSCLDC163PLA
- UPC: 785007040562
- PPN: P-S-LSCLDC163PLA
CAD
$75.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CFL/LED/Incandescent 3-Way Slide Dimmer with Fan Control, Light Almond
Features
- CFL/LED dimmable bulb compatible (except for 0-10V LED drivers)
- Single pole/3-way versions
- Unique integrated single pole/3-way dimmer with fan speed control
- Ratings: 150W LED & CFL: 300W Incandescent: 1.6A (Fan Control): 120VAC 60Hz
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.28 in
- Special Features
- The industry's first CFL/LED dimmer with fan speed control works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. Preset.
- Width
- 2.5 in
- Load Type
- CFL
- Standard
- RoHS
- Load Type
- Halogen
- Switch Type
- Slider
- Speed Range
- 3-Speed
- Contact Rating
- 120VAC
- Frequency Rating
- 60 Hz
- Mounting Type
- Wall Box
- Wire Size
- #14 - #10 AWG
- Product Series
- Trademaster
- Application Sector
- Residential
- Load Rating
- 120V 300W (Halogen)
- Load Rating
- 120V 1.25A 150W (CFL)
- Load Rating
- 120V 1.6A (FAN MOTOR)
- Wire Connection Type
- Flying Leads
- Environmental Conditions
- Indoor Only
- Warranty Type
- Limited Lifetime Warranty
- Finish
- Gloss
- Product Line
- Pass & Seymour
Height4.19 in
PresetYes
Country of OriginChina
Load TypeLED
Voltage120 VAC
Switch TypeRocker
Load TypeFan Motor
FeaturesCombination
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches2.0
Requires Neutral WireNo
ConnectionBack and side wire
FeaturesDe-Hummer Fan Control
FeaturesLow-End Trim (Dim Range)
Load Rating120V 1.25A 150W (LED)
Number of PolesSingle Pole 3-Way
Dimming CompatibilityForward Phase
Load Rating120V 300W (Incandescent)
ColorLight Almond
MaterialSteel,Thermoplastic
