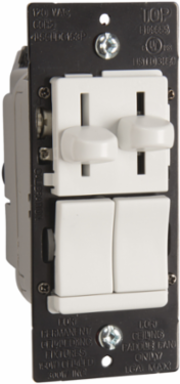

Pass & Seymour LSCLDC163PW Single Pole/3-Way Dimmer with Fan Control, 150W LED/CFL, 4.19 Inch Height, White
- MPN: LSCLDC163PW
- UPC: 785007040517
- PPN: P-S-LSCLDC163PW
CAD
$75.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Pole/3-Way Dimmer with Fan Control, 150W LED/CFL, 4.19 Inch Height, White
Features
- CFL/LED dimmable bulb compatible (except for 0-10V LED drivers)
- Single pole/3-way versions
- Unique integrated single pole/3-way dimmer with fan speed control
- Ratings: 150W LED & CFL: 300W Incandescent: 1.6A (Fan Control): 120VAC 60Hz
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.28 in
- Preset
- Yes
- Width
- 2.5 in
- Country of Origin
- China
- Voltage
- 120 VAC
- Switch Type
- Rocker
- Load Type
- Fan Motor
- Features
- Combination
- Indoor/Outdoor
- Indoor
- Load Type
- Incandescent
- Number of Switches
- 2.0
- Requires Neutral Wire
- No
- Connection
- Back and side wire
- Features
- De-Hummer Fan Control
- Features
- Low-End Trim (Dim Range)
- Load Rating
- 120V 1.25A 150W (LED)
- Number of Poles
- Single Pole 3-Way
- Dimming Compatibility
- Forward Phase
- Load Rating
- 120V 300W (Incandescent)
- Finish
- Matte
- Product Line
- Pass & Seymour
- Special Features
- The industry's first CFL/LED dimmer with fan speed control works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. Preset.
Height4.19 in
Load TypeCFL
Load TypeLED
StandardRoHS
Load TypeHalogen
Switch TypeSlider
Speed Range3-Speed
Contact Rating120VAC
Frequency Rating60 Hz
Mounting TypeWall Box
Wire Size#14 - #10 AWG
Product SeriesTrademaster
Application SectorResidential
Load Rating120V 300W (Halogen)
Load Rating120V 1.25A 150W (CFL)
Load Rating120V 1.6A (FAN MOTOR)
Wire Connection TypeFlying Leads
Environmental ConditionsIndoor Only
ColorWhite
MaterialSteel,Thermoplastic
Warranty TypeLimited Lifetime Warranty
