ABB LS45P32B11 LS45P32B11 Limit Switch
- MPN: LS45P32B11
- UPC: 662019793139
- PPN: ABB-LS45P32B11
- UNSPSC: 39122213
CAD
$107.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

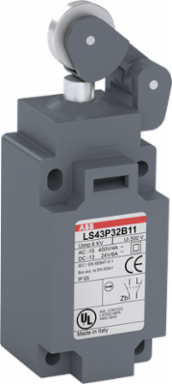

LS45P32B11 is a 40 mm wide, standard reinforced Limit Switch made of fiber-glass reinforced UL-V0 material, with 4 mounting holes at the top and bottom, 1 1/2'' NPT cable entry on the bottom, stainless steel roller lever (Ø22 mm) on steel plunger actuator for vertical movement and 1 N.O + 1 N.C snap action (Zb type) contacts
Specifications
Dimensions
- Product Net Width
- 47 mm
- Product Net Depth / Length
- 41 mm
Product Net Height121 mm
Product Net Weight0.146 kg
Technical
- Action Type of the Contact Element (acc. to IEC 60947-5-1)
- Snap action contacts
- Actuation Speed
- acc. to IEC 60947-5-1 Max. 1 m/s
- Angular Head Adjustment
- adjustable head every 90°
- B10d Value
- Operations 50 Millions
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Consistency (Measured over 1 Million Operations)
- 0.1 mm
- Connecting Terminals (delivered in open position)
- M3.5 (+,-) pozidriv 2 screw with cable clamp
- Electrical Shock Protection acc. to IEC 536
- Double insulation - Class II
- Housing Material
- Plastic
- Maximum Mounted Auxiliary Contacts
- 1 NO, 1 NC
- Mounting Type
- 40 mm (EN 50041)
- Movement to be Detected
- 30° Unidirectional Cam Translation Movement
- Number of Auxiliary Contacts NO
- 1
- Pilot Duty UL/CSA
- A600Q600
- Positive Opening Operation of NC Contact(s)
- Yes
- Rated Operational Current AC-15 (Ie)
- (230 V AC) 3.1 A(400 V) NC 4(24 V) 10 A(130 V) 5.5 A(240 V) 3 A
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 Vacc. to UL/CSA 600 V
- Resistance Between Contacts
- 25 E45
- Terminal Marking
- according to EN 50013
Actuating ForceMinimum Force acc. to IEC 60947-5-1 12 N
Actuator TypeØ 22 mm stainless steel roller lever on stainless steel plunger
Angular Lever Adjustmentnone
Climatic Withstandaccording to IEC 68-2-3 and salty mist according to IEC 68-2-11
Connecting CapacityBar AWG 20 ... AWG 14 mm²Bar 0.5 ... 2.5 mm²
Contact Element Form (acc. to IEC 60947-5-1)Zb
Degree of Protectionacc. to IEC 60529 IP65
Flammability According to UL94V-0
Maximum Electrical Switching Frequency3600 cycles per hour(AC-15) 3600 cycles per hour(DC-13) 3600 cycles per hour
Mechanical Durability0 cycle
Mounting by Screws (not supplied)2 or 4 x M5 screws
Number of Auxiliary Contacts NC1
Number and Type of Bottom Cable Glands1/2 NPT cable gland
Positive Opening Operation Force (Direct Opening Action)Minimum Force acc. to IEC 60947-5-1 40 NEW
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)Supply Circuit 50 / 60 Hz
Rated Operational Current DC-13 (Ie)(24 V) 6 A(110 V) 0.6 A(125 V) 0.55 A(250 V) 0.4 A
Short-Circuit Protective DevicesgG Type Fuses 10 A
Classifications
- Object Classification Code
- B
- IDEA Granular Category Code (IGCC)
- 5202 >> Limit switch
eClassV11.0 : 27272601
Environmental
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -30 ... +80 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- 25g (10 to 500 Hz) no change in position of contacts greater than 100 µs
Resistance to Shock acc. to IEC 60068-2-27Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s²
RoHS StatusFollowing EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
