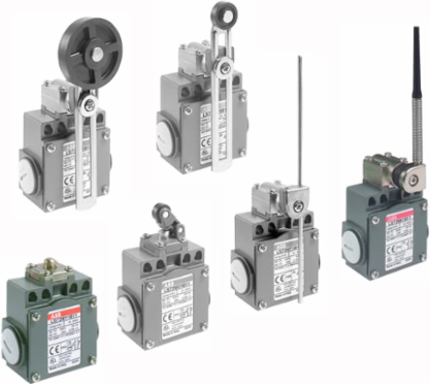

ABB LS75M12B11 LS75M12B11 Limit Switch
- MPN: LS75M12B11
- UPC: 804325390842
- PPN: ABB-LS75M12B11
- UNSPSC: 39122213
CAD
$100.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LS75M12B11 is a 50 mm wide, reinforced Limit Switch made of zinc alloy material (Zamak), with 4 mounting holes at the top, 3 1/2'' NPT cable entries on the bottom and sides, steel roller plunger actuator and 1 N.O + 1 N.C snap action (Zb type) contacts
Specifications
Dimensions
- Product Net Width
- 59 mm
- Product Net Depth / Length
- 32 mm
Product Net Height85 mm
Product Net Weight0.259 kg
Technical
- B10d Value
- Operations 50 Millions
- Degree of Protection
- acc. to IEC 60529 IP66
- Mechanical Durability
- 0 cycle
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 Vacc. to UL/CSA 600 V
- Short-Circuit Protective Devices
- gG Type Fuses 10 A
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Maximum Electrical Switching Frequency(AC-15) 3600 cycles per hour(DC-13) 3600 cycles per hour
Pilot Duty UL/CSAA600Q600
Rated Operational Current AC-15 (Ie)(230 V AC) 3.1 A(400 V) NC 4(24 V) 10 A(130 V) 5.5 A(240 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A(110 V) 0.6 A(125 V) 0.55 A(250 V) 0.4 A
Classifications
- eClass
- V11.1 : 27270601
IDEA Granular Category Code (IGCC)5202 >> Limit switch
Environmental
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -30 ... +80 °C
RoHS StatusFollowing EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85364900
