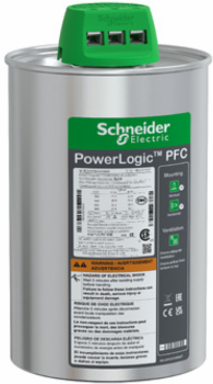

Schneider Electric BLRCH276A331B69 LVCAP-60HZ-600V-25KVAR
- MPN: BLRCH276A331B69
- PPN: SCH-BLRCH276A331B69
CAD
$667.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
LVCAP-60HZ-600V-25KVAR
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 690 V AC 50/60 Hz |
|---|---|
| Continuous Overcurrent Capacity | 1.8 x In |
| Power Losses | < 0.5 W/kVAr |
| Voltage Test | 2.15 x Un AC for 10 s |
| Maximum Switching Operation per Year | 7000 |
| Dielectric Material | Metallized polypropylene film with Zn/Al alloy |
| Mounting Mode | Upright/horizontal |
| Height | 242 mm |
| IP Degree of Protection | IP20 |
| Temperature Range | -25 to 55 C |
| Standards | IEC 60831-1, IEC 60831-2 |
| Maximum Permissible Voltage | 1.1 x Un (8 hours over 24 hours) |
|---|---|
| Dielectric Losses | < 0.2 W/kVAr |
| Capacitance Tolerance | -5% to 10% |
| Inrush Current | 250 x In |
| Service Life | 130000 h |
| Impregnation Material | Non-PCB dry PUR resin |
| Diameter | 136 mm |
| Product Weight | 3.2 kg |
| Operating Altitude | 2000 m |
| Relative Humidity | 95% |
