Schneider Electric

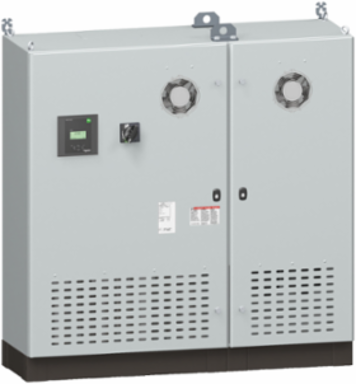

Schneider Electric VA075M41G6S PowerLogic PFC Smart Capacitor Bank 75 kVAR 600V 3P Indoor

PowerLogic PFC Smart Capacitor Bank 75 kVAR 600V 3P Indoor
  • MPN: VA075M41G6S
  • PPN: SCH-VA075M41G6S

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric PowerLogic PFC Smart Capacitor Bank offers an efficient solution for power factor correction, with a capacity of 75 kVAR and designed for 600V 3-phase indoor applications. Engineered by Schneider Electric, this smart capacitor bank not only helps to improve energy efficiency by maintaining optimal voltage levels, but it also contributes to reduced energy costs and extended equipment life. Its advanced technology allows for seamless integration into your electrical systems, ensuring reliable performance and enhanced productivity for various industrial settings.

Specifications

Reactive Power Rating
75 kvar
Rated Short-Time Withstand Current
65 kA 4 cycles
Power Per Step
25 kvar
Tuning Factor
4.2
Operating Mode
Automatic
Width
1300 mm (51.18 in)
Weight
265 kg
NEMA Degree of Protection
NEMA 1 with gasket
Total Harmonic Distortion (THDU)
0-7 %
Operating Altitude
<= 2000 m (6561.68 ft)
Average Ambient Temperature for Operation
25 °C annual, 35 °C over 24 hours
Reach Regulation
Contains Substances of Very High Concern above threshold
Eu Rohs Directive
Compliant
Mercury Free
Yes
Network Rated Voltage600 V AC 60 Hz
Maximum Permissible Voltage1.1 x Un (8 hours over 24 hours)
Tuning Frequency252 Hz
Poles3P
Height1200 mm (47.24 in)
Depth400 mm (15.75 in)
Mounting LocationIndoor
Protection TypeMain lug
Relative Humidity0-95 %
Ambient Air Temperature for Operation-10 to 46 °C (14 to 115 °F)
ColorGray RAL 7035
Product CertificationsCSA C22.2 No 190-M1985, UL 810, UL 508 A, cCSAus
Toxic Heavy Metal FreeYes
Sustainable Offer StatusGreen Premium product
