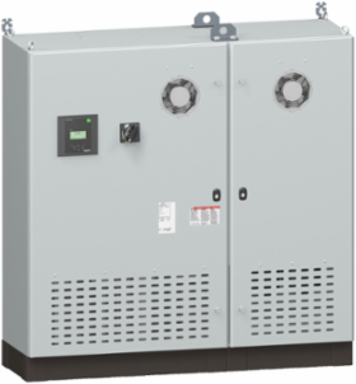

Schneider Electric VA050B41G6S PowerLogic PFC Smart Capacitor Bank 50 kvar 600V 60Hz NEMA 1

PowerLogic PFC Smart Capacitor Bank 50 kvar 600V 60Hz NEMA 1
  • MPN: VA050B41G6S
  • PPN: SCH-VA050B41G6S

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric VA050B41G6S PowerLogic PFC Smart Capacitor Bank is engineered to enhance power factor correction in a compact design. With a rating of 50 kvar and capable of operating at 600V and 60Hz, this device is ideal for optimizing the performance and efficiency of electrical systems. Its NEMA 1 enclosure ensures reliable protection in indoor environments, making it a robust solution for various industrial applications. This smart capacitor bank helps to reduce energy costs and improve the overall reliability of power distribution, making it a valuable asset for facilities aiming for energy efficiency.

Specifications

Reactive Power Rating
50 kvar
Operating Mode
Automatic
Power per Step
12.5 kvar
Phase
3P
Tuning Frequency
252 Hz
Height
1200 mm (47.24 in)
Depth
400 mm (15.75 in)
Mounting Location
Indoor
Relative Humidity
0-95 %
Ambient Air Temperature for Operation
-10 to 46 °C (14 to 115 °F)
Standards
CSA C22.2 No 190-M1985, UL 810, UL 508 A
REACH Regulation
Contains Substances of Very High Concern above threshold
China RoHS Regulation
Out of China RoHS scope; substance declaration
Mercury Free
Yes
Device Short Name
PowerLogic PFC Smart
Protection Type
Circuit breaker protection
Circularity Profile
ENVEOLI2109003
Product Or Component Type
Capacitor bank
Voltage600 V AC 60 Hz
Breaking Capacity50 kA
Step Composition2x12.5 kvar + 25 kvar
Tuning Factor4.2
Maximum Permissible Voltage1.1 x Un (8 hours over 24 hours)
Width1300 mm (51.18 in)
Net Weight265 kg (584.23 lb)
NEMA Degree of ProtectionNEMA 1 with gasket
Operating Altitude<= 2000 m (6562 ft)
Average Ambient Air Temperature for Operation25 °C annual, 35 °C over 24 hours
Product CertificationscCSAus
EU RoHS DirectiveCompliant
Toxic Heavy Metal FreeYes
Controller TypePowerLogic PFC Controller VPL12
Range Of ProductPowerLogic
Accessibility For OperationFront
ColourGrey RAL 7035
Environmental DisclosureENVPEP2109003
