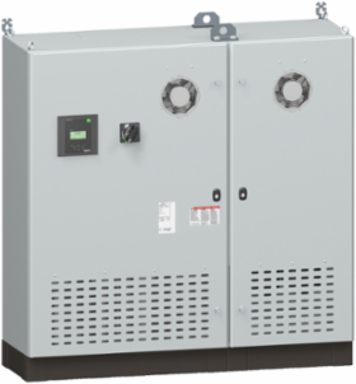

Schneider Electric VA125M41G60 PowerLogic PFC Capacitor Bank 125 kvar, 600V, Indoor, NEMA 1

MPN: VA125M41G60
PPN: SCH-VA125M41G60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VA125M41G60 PowerLogic PFC Capacitor Bank is engineered for efficient power factor correction, delivering a robust 125 kvar performance at 600V. Designed for indoor use, this unit is housed in a NEMA 1 enclosure, ensuring it is suitable for various indoor environments while providing reliable protection. With its focus on improving energy efficiency and extending the lifespan of electrical equipment, this capacitor bank is an essential component for optimizing power quality in industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Accessibility For Operation	front
Range Of Product	PowerLogic
Operating Mode	automatic
Product Or Component Type	capacitor bank
Device Short Name	PowerLogic PFC detuned

Series Name	PowerLogic PFC Capacitor + Detuned Reactor
Reactive Power Rating	125 kvar
Network Rated Voltage	600 V AC 60 Hz
Colour	grey RAL 7035)
Controller Type	PowerLogic PFC Controller VPL12

Complementary

[Icw] Rated Short-Time Withstand Current	65 kA 4 cycles
Width	1300 mm
Height	1200 mm
Protection Type	main lug
Tuning Frequency	252 Hz
Depth	400 mm
Net Weight	265 kg
Mounting Location	indoor

Power Per Step	25 kvar
Nema Degree Of Protection	NEMA 1 with gasket
Poles Description	3P
Maximum Permissible Voltage	1.1 x Un 8 hours over 24 hours)
[Thdu] Total Harmonic Distorsion	0-7 %
Tuning Factor	4.2
Step Composition	25 + 2x50

Environment

Product Certifications	cCSAus
Ambient Air Temperature For Operation	-10-46 °C
Average Ambient Air Temperature For Operation	25 °C annual) \|\| 35 °C over 24 hours)

Relative Humidity	0-95 %
Standards	CSA C22.2 No 190-M1985 \|\| UL 810 \|\| UL 508 A
Operating Altitude	<= 2000 m

Offer Sustainability

China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP2109003
Toxic Heavy Metal Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
