Nvent Hoffman

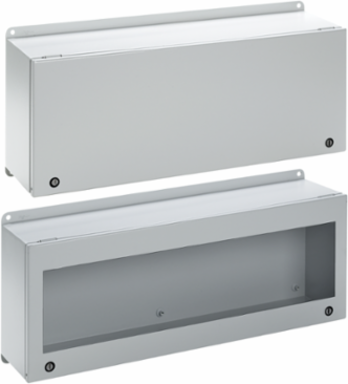

Nvent Hoffman LWC237716 InLine Landscape Enclosure Window Type 4 230x770x155mm, Light Gray Steel

InLine Landscape Enclosure Window Type 4 230x770x155mm, Light Gray Steel
  • MPN: LWC237716
  • UPC: 783510110345
  • PPN: HOF-LWC237716
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$520.15/ EA

Description

Landscape orientation makes it easy to mount components when minimal height is needed. This InLine Landscape Enclosure Window Type 4 12, LWC237716 item measures 230x770x155mm a material of Steel colored Light Gray.

Features

  • Metric dimensions
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover and door
  • Hardware kit includes panel mounting screws and grounding hardware
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latches
  • Door opens 180 degrees
  • Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
  • Seamless foam-in-place gasket

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
770
Protection Rating
NEMA Type 12
Finish
Powder Coated
Thickness (T)
1.5
Mounting Studs (J)
28.57
Cover Style
Window
Weight
20.9
Sub Brand
InLine
Size
230x770x155mm
Height (H)230
Depth (D)155
Product FamilyInLine
Color CodeRAL 7035
NEMA Rating12 Indoor, dust-resistant
Clear Space Above Panel5.51
IP RatingIP66
Window Size (M x N)139 x 719
MaterialSteel
ColorLtGray
