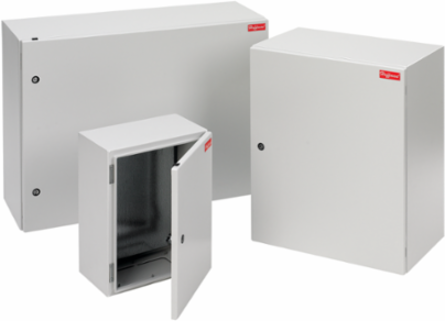

nVent Hoffman G1500900325G Fusion G7 Enclosure, 1500x900x325mm, Steel, NEMA 12, Light Gray
- MPN: G1500900325G
- UPC: 783510190118
- PPN: HOF-G1500900325G
- UNSPSC: 39121324
CAD
$2487.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G1500900325G item measures 1500x900X325mm with a material of Steel colored Lt Gray.
Features
- Seamless foam-in-place gasket
- Reversible door with sealed hinges and hinge brackets
- Gland plate(s) for enclosure bottom
- Bonding provision on door; grounding studs (2) on body
- Full-height galvanized steel back panel included
- External formed 90-degree body flange channels away liquids
- Three-point latching on enclosures 1000-mm high and taller
- Door alignment device on doors with 3-point latching and 800 mm or wider
- Pre-cut gland plate opening(s) in enclosure bottom
- Quarter-turn latch(es) with 3-mm double-bit insert
- Corner-formed door
- Simple, easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
- Hardware kit includes grounding and sealing hardware
- Hinged on right side
- Installation instruction provided
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 900
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Body Thickness
- 1.9
- Latch Type
- 3-Point Quarter-Turn
- Weight
- 214
- Material
- Steel
Height (H)1,500
Depth (D)325
Product FamilyFusion G7
ColorLight Gray
NEMA Rating12 Indoor, dust-resistant
Door Thickness1.9
IP RatingIP66
Sub BrandFusion G7
Size1500x900X325mm
