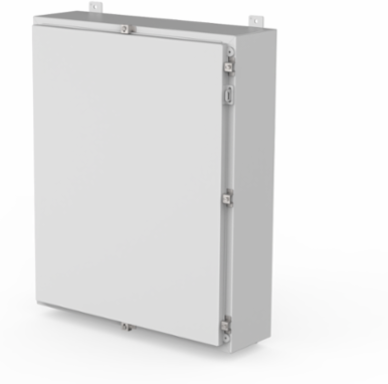

nVent Hoffman A483610LPLG Continuous Hinge Enclosure with Clamps LP Type 4, 48x36x10 Light Gray Mild Steel
- MPN: A483610LPLG
- UPC: 783510627492
- PPN: HOF-A483610LPLG
- UNSPSC: 39121324
CAD
$1848.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

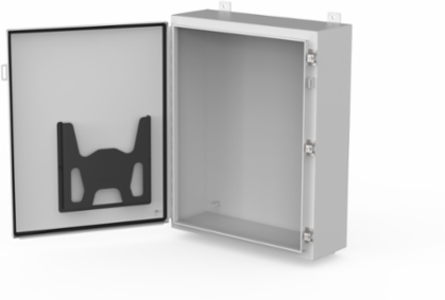

Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A483610LPLG measures 48x36x10 in from steel and painted RAL7035 light gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Color
- Light Gray
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- NEMA Rating
- 12 Indoor, dust-resistant
- Data Pocket
- Large
- Weight
- 126
Height (H)1,219
Depth (D)254
Color CodeRAL 7035
MaterialMild Steel
Thickness (T)1.9
Clamp Quantity6
IP RatingIP66
