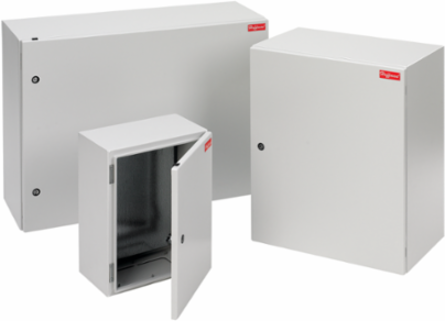

nVent Hoffman G600500200G Fusion G7 Enclosure, 600x500x200mm, Steel, Light Gray, NEMA Type 12, IP66
- MPN: G600500200G
- UPC: 783510189884
- PPN: HOF-G600500200G
- UNSPSC: 39121324
CAD
$1022.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G600500200G item measures 600x500X200mm with a material of Steel colored Lt Gray.
Features
- Seamless foam-in-place gasket
- Reversible door with sealed hinges and hinge brackets
- Gland plate(s) for enclosure bottom
- Bonding provision on door; grounding studs (2) on body
- Full-height galvanized steel back panel included
- External formed 90-degree body flange channels away liquids
- Three-point latching on enclosures 1000-mm high and taller
- Door alignment device on doors with 3-point latching and 800 mm or wider
- Pre-cut gland plate opening(s) in enclosure bottom
- Quarter-turn latch(es) with 3-mm double-bit insert
- Corner-formed door
- Simple, easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
- Hardware kit includes grounding and sealing hardware
- Hinged on right side
- Installation instruction provided
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 500
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Door Thickness
- 1.52
- IP Rating
- IP66
- Sub Brand
- Fusion G7
- Size
- 600x500X200mm
Height (H)600
Depth (D)200
Product FamilyFusion G7
ColorLight Gray
Body Thickness1.21
Latch TypeQuarter-Turn
Weight35
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
