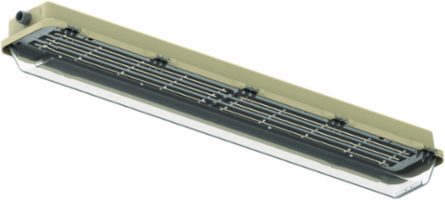

Killark LZ2NL3430 LED Linear Light, 34W, 5075 Lumens, 4.5 Inch Length, IP66, 5000K
Killark LZ2NL3430 LED Linear Light, 34W, 5075 Lumens, 4.5 Inch Length, IP66, 5000K
- MPN: LZ2NL3430
- UPC: 783936122359
- PPN: HBL-LZ2NL3430
- UNSPSC: 39111501
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3548.14/ EA
Description
LZ2NL Series Linear LED fixtures are made of a fiberglass reinforced polyester body with an impact resistant polycarbonate lens and use energy efficient LED's that are suitable for use in harsh and hazardous environments.
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- LED Array Life – to 212,000 maintenance free hours to 70% initial lumens
- Ambient suitability -40°C to 55°C up to 120W
- Instant On – Including after power interruption
- World Voltage 120 - 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values – Industry Nomenclature for Hours of use to 70% of initial Lumens – TM-21 & Calculated
- Nonmetallic Housing
- NEMA 44X & IP66 rated enclosure. Housing - one piece fiberglass reinforced polyester. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
Specifications
Specifications
- Finish
- Natural
- Special Features
- NEMA 44X & IP66 rated enclosure. Housing - one piece fiberglass reinforced polyester. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
- Color
- White
- Dimensions
- 4.5 in x 1 in x 6.5 in
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- IP Rating
- IP66
- Lumens
- 5075
- Voltage Rating
- 120-277 VAC
- Width
- 1 in
- Finish Type
- Natural
- Mounting Type
- Pendant;Surface
- Wattage
- 34 W
- Description - Invoice
- LZ2 34W LED 120-277VAC 50/60HZ FRP 4'
- Harmonization Code
- 9405108020
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D202
- Lumen Range
- 5,001-10,000 lm
- Light Source
- LED
- Series
- LZ2NL Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936122359
MountingPendant;Surface
ARRA CompliantContact Manufacturer
Country of OriginUS
Each - Width1.000 in
Height6.5 in
Length4.5 in
Optic TypePolycarbonate Lens - Clear
Weight23 lb.
ApplicationLinear LED luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, and NEMA 3, 4X IP66 areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC/CEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, garages, storage facilities, tunnels, and grain/food facilities.
Frequency Rating50/60 Hz
TypeNon-Metallic Linear LED Fixture
Class CodeD20
Freight Class Code10970009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging23
Lumens Per Watt149.3
MaterialPolyester, Fiberglass Reinforced
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
