Milwaukee Tool 3642-21 M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver

M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver
  • MPN: 3642-21
  • UPC: 045242818730
  • PPN: MIL-3642-21
  • UNSPSC: 41111615

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1842.29/ EA

Description

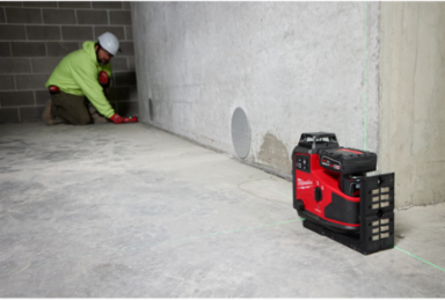

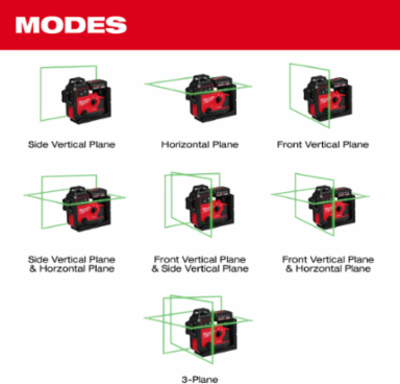

The MILWAUKEE® M12™ Green 360˚ 3-Plane Laser w/Automatic Alignment & Receiver Kit provides Automatic Alignment & 70% Brighter Lines* for a faster, more accurate layout onsite. With the kitted Receiver, you can Automatically Align your Laser up to 125’, making the layout of long runs more efficient. In boosted mode, the 3642-21 is 70% Brighter than our current 3632-21 providing better visibility when it's needed. You will get 10+ Hours of Runtime in Standard Brightness, and 6+ Hours of Runtime in Boosted mode when paired with the 4.0 XC battery pack. You can adjust the brightness and put the laser to sleep from the receiver which is ideal for saving power during breaks. The three 360° planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. The integrated bracket features amplified rare earth magnets that provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading Milwaukee® M12™ System, this 360˚ laser level is compatible with all M12™ Batteries.

Features

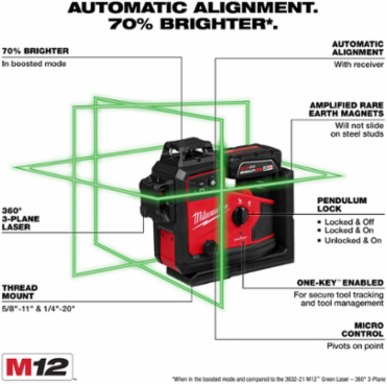

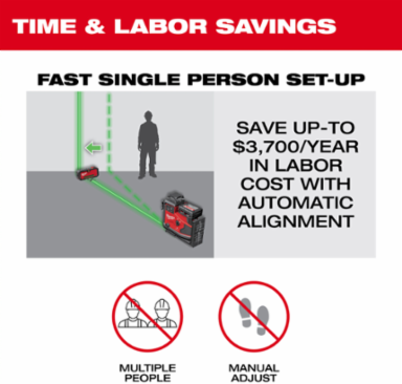

  • Automatic Alignment Up-To 125'

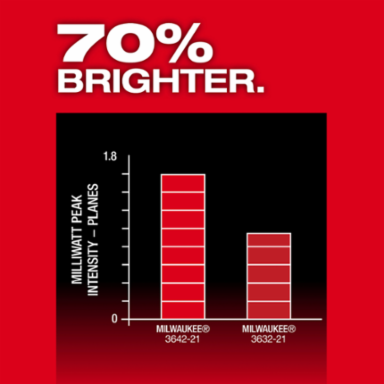

  • 70% Brighter, when in the Boosted Mode and compared to the 3632 M12™ Green 3-Plane Laser
  • 10+ Hours of Runtime

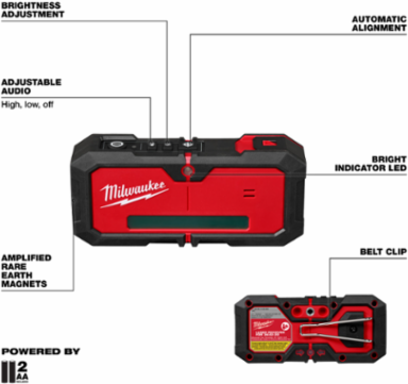

  • Remote Brightness Adjustment - Standard, Boost & Off
  • Micro Control - Pivots on Point

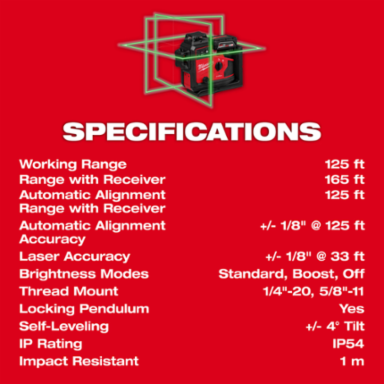

  • 125 ft. Working Range
  • 165 ft. Range with Detector
  • Accuracy: +/- 1/8" @ 33 ft
  • Automatic Alignment Accuracy: +/- 1/8" @ 125 ft
  • Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
  • Self Leveling: +/- 4° Tilt
  • IP54 Rated: Water and Dust Resistant
  • 1m Impact Resistance
  • ONE-KEY™ Tracking and Tool Management
  • 1/4-20 & 5/8-11 Thread Mount

Specifications

Specifications

Country of Origin
Vietnam
Accurate to Within __ in per 100 ft
0.375
Wireless Remote Control Included
No
Laser Level Beam Type
Beam
Laser Level Mounting Method
Wall or Tripod
Maximum Distance
125 ft
Projects Beam 360 degrees
Yes
Weight
3.78 Pounds
Battery Size
12 Volt
LED Display
No
Tripod Included
No
Case Material
Molded Plastic
Accessories IncludedNo
Color / FinishRed
Indoor / OutdoorIndoor
Laser Level FunctionsPlumb & Level & Square
Laser Level Type360 Plane
Out -Of - Level ShutoffNo
Self LevelingYes
Automatic OperationYes
Battery Voltage (V)12
MaterialGlass Filled Nylon
Case IncludedYes

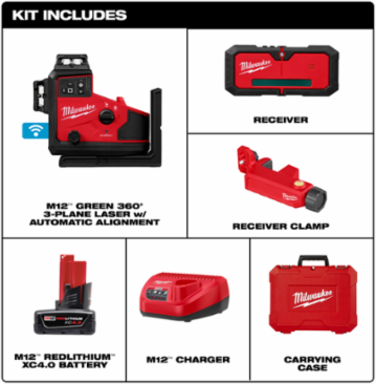

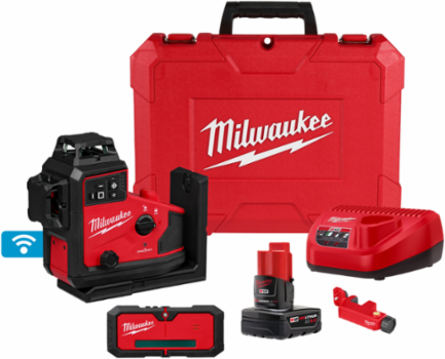

Package Contents(1) Green 360° 3-Plane Laser w/Automatic Alignment (3642-20); (1) Laser Receiver; (1)M12 4.0Ah XC Battery (48-11-2440); (1) M12 Charger (48-59-2440); (2) AA Batteries; (1) Carrying Case
