Klein Tools 93CPLG Compact Green Self-Leveling Laser Level, 3 Beams, 100' Range, IP54 Rated
- MPN: 93CPLG
- UPC: 092644930133
- PPN: KLT-93CPLG
- UNSPSC: 27111802
CAD
$279.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

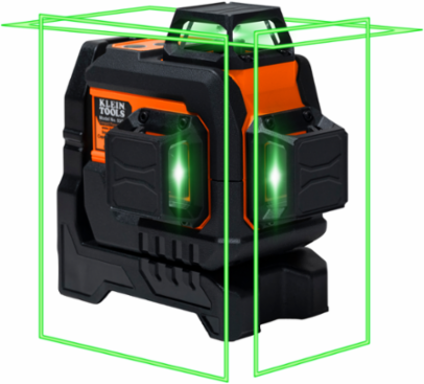

The Klein Tools Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals with a Class 2 laser (IEC 60825-1 Ed. 3.) with an output power of less than or equal to 1mW at 508-525 nm. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-Inch-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications.
Features

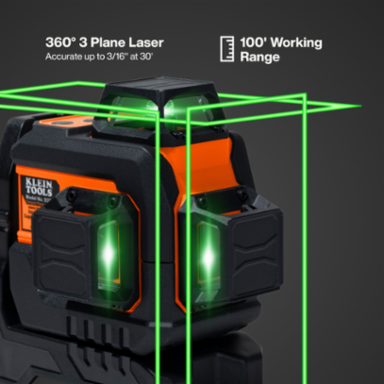

- Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams
- Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use

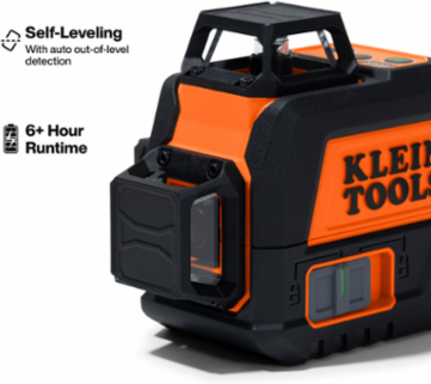

- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
- Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles

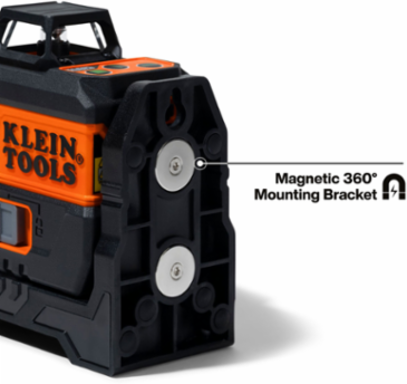

- Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount
- More than 6-Hour runtime provides lasers power for all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust
- Manual Tilt Mode, Out of Angle Notification, Battery Fuel Gauge
Documentation & Downloads
Specifications
Key Specifications
- Drop Protection
- 3' (1 m)
- Transit Locking Mechanism
- Yes
- Number of Beams
- 3
- Laser Color
- Green
- Low Battery Alarm
- Yes
- Material
- PC+ABS+TPE
- Bag or Case
- Soft Case
- Accuracy
- ± 3mm per 10m
- Included

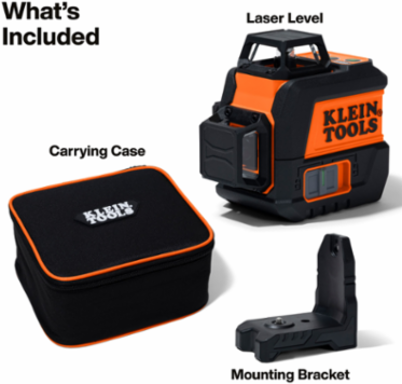

- Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp
- Number of Vials
- 0
- Receiver
- No
- Outdoor Range
- 100' (30.5 m)
- Indoor Range
- 100' (30.5 m)
- Display
- No
- Laser mW
- ≤ 1mW
- Overall Length
- 10.7 cm (4.2 Inch)
- Maximum Distance
- 30.5 m (100 Feet)
- Height
- 3.9500 in
- Depth
- 4.2200 in
Low Battery IndicatorYes
Magnet TypeRare Earth - Neodymium
Pulse ModeNo
Plumb LaserNo
Ingress ProtectionIP54 - Water and Dust Resistant
Battery Life6 hr
BatteriesLithium-Ion
ApplicationSelf-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
StandardComplies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
Laser Safety21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Laser Wavelength508-525 nm
TypeSelf-Leveling Laser Level
Mounting TypeMagnetic Bracket, Tripod Mount
Out-of-Level IndicatorYes
Laser ClassClass 2
Overall Height10.2 cm (4 Inch)
Overall Width3.2 Inch (8.1 cm)
Width3.1900 in
Weight0.9300 lbs
