Klein Tools 93MCLS Mini Self-Leveling Red Laser Level, 35 Foot Range, IP54 Water Resistant
- MPN: 93MCLS
- UPC: 092644930102
- PPN: KLT-93MCLS
- UNSPSC: 27111802
CAD
$88.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

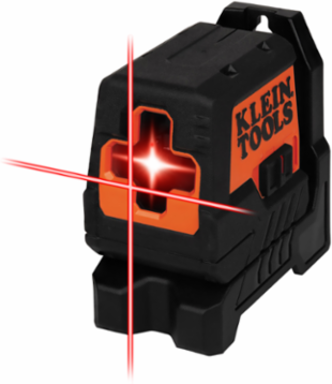

The Klein Tools Mini Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals with over 18 hours of runtime with a Class 2 laser (IEC 60825-1 Ed. 3.) with an output power of less than or equal to 1mW at 630-642 nm. This level provides a reliable pendulum self-leveling system with red laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust
Features

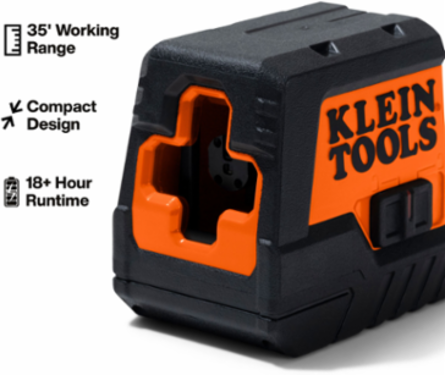

- Self-Leveling Red Laser Level has easy-to-read, horizontal and vertical lines, optimized for indoor lighting conditions with a working range of 35 feet (10.7 m)
- Projects horizontal and vertical lines to address various alignment tasks
- Compact and lightweight design is easy to use in tight areas and to store when not in use

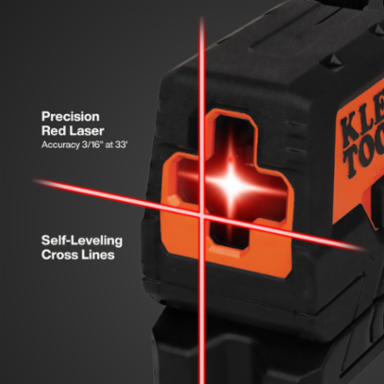

- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
- Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount
- Over 18 hours of runtime provides enough laser power to ensure extended all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust

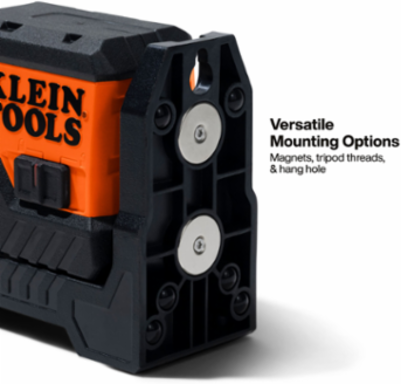

- Magnetic Mounting Bracket with 1/4'' Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator
Documentation & Downloads
Specifications
Key Specifications
- Battery Life
- 18 hr
- Included

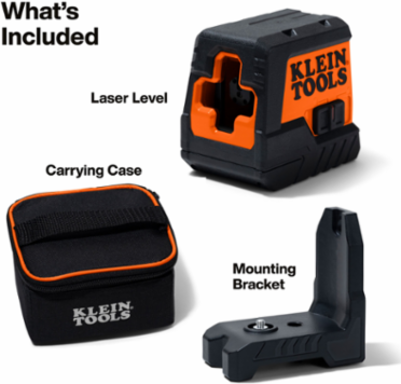

- Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp; 2 x AA 1.5V Alkaline Batteries
- Laser Wavelength
- ≤ 1mW 630 - 642 nm
- Magnet Type
- Rare Earth - Neodymium
- Laser Color
- Red
- Accuracy
- +/- 3/16" per 33' (10 m)
- Ingress Protection
- IP54 - Water and Dust Resistant
- Number of Beams
- 2
- Transit Locking Mechanism
- Yes
- Receiver
- No
- Low Battery Alarm
- Yes
- Low Battery Indicator
- Yes
- Mounting Type
- Magnetic Bracket, Tripod Mount
- Out-of-Level Indicator
- Yes
- Laser Class
- Class 2
- Overall Height
- 10.2 cm (4 Inch)
- Overall Width
- 3.2 Inch (8.1 cm)
- Width
- 2.2300 in
- Weight
- 0.4600 lbs
Number of Vials0
Bag or CaseSoft Case
Batteries2 x AA
Drop Protection3' (1 m)
Laser SafetyComplies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
MaterialPC + ABS + TPE
Plumb LaserNo
ApplicationSelf-Leveling Laser Alignment Tool
Pulse ModeNo
TypeLaser
Indoor Range35' (10.7 m)
StandardConforms to EN61326-1:2013, EN60825-1:2014
DisplayNo
Laser mW≤ 1mW
Overall Length10.7 cm (4.2 Inch)
Maximum Distance10.7 m (35 Feet)
Height2.9800 in
Depth3.1900 in
