Klein Tools 93PLL Rechargeable Green Laser Level with 3 Planar Lines, IP54 Rating, 9 hr Battery Life
- MPN: 93PLL
- UPC: 092644692789
- PPN: KLT-93PLL
- UNSPSC: 27111802
CAD
$454.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

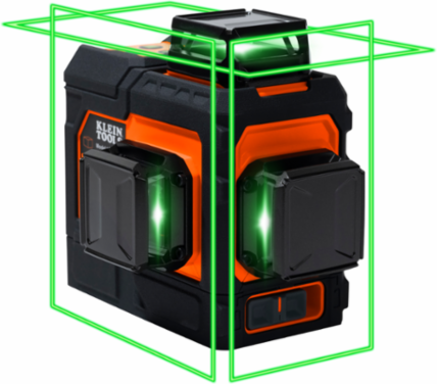

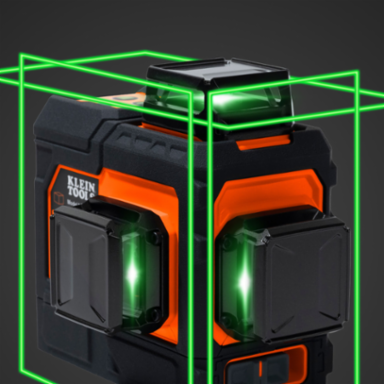

The Klein Tools Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y-, and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-Inch-20 tripod mounting threads, Klein's self-leveling laser level is more precise than a traditional spirit or box level, and enables a multitude of alignment.
Features

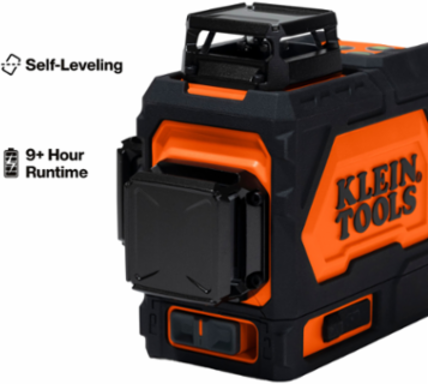

- Rechargeable Self-Leveling Green Planar Laser Level is easy-to-read with strong green horizontal and vertical laser lines
- Projects a line independently or together in X-, Y-, and Z-planes to align stud, concrete, tiles, conduit, and more
- Find Plumb spots much quicker than a traditional string bob by using the intersection of the Y and Z planes
- More than 9 hour run time with integrated rechargeable Li-Ion powered battery
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm)

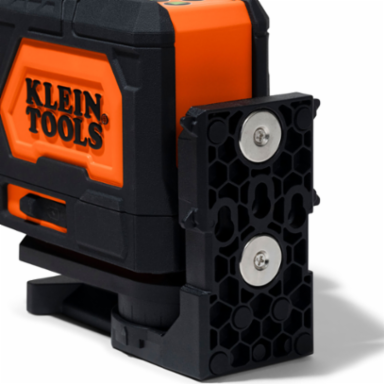

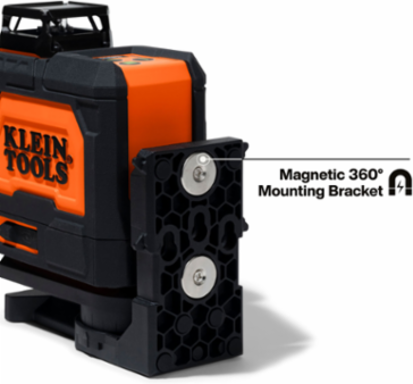

- Integrated magnetic mounting bracket with 1/4-Inch-20 tripod mounting threads
- Strong and rugged body provides IP54 water and dust resistance; hard plastic carrying case included

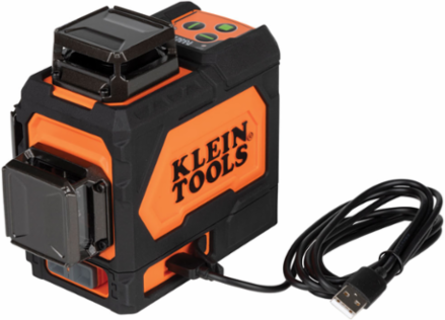

- Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, drop-resistant hard carrying case, and instructions
- Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
Documentation & Downloads
Specifications
Key Specifications
- Accuracy

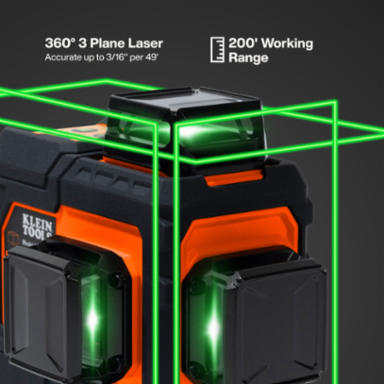

- +/- 3/16" per 49' (+/- 4.5mm per 15m)
- Application
- Self-Leveling Laser Alignment Instrument
- Number of Beams
- 3
- Type
- Self-Leveling Laser Level
- Pulse Mode
- No
- Overall Height
- 3.5" (1.4 cm) (8.9 cm) (3.5 Inch)
- Ingress Protection
- IP54 - Water and Dust Resistant
- Indoor Range
- 200' (60 m)
- Laser Wavelength
- 510-530 nm
- Low Battery Indicator
- Yes
- Battery Life
- 9 hr
- Laser Class
- Class 2
- Maximum Distance
- 61 m (200 Feet)
- Height
- 4.7400 in
- Depth
- 5.5000 in
Bag or CaseHard Carrying Case
Plumb LaserNo
MaterialABS Housing and Electronic Components

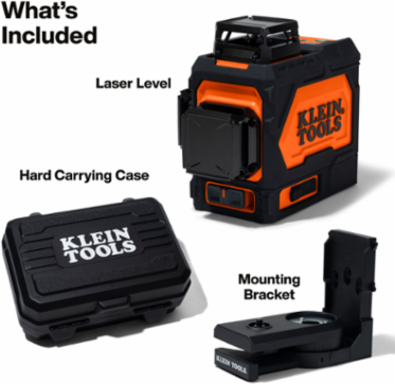

IncludedLaser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case
Transit Locking MechanismYes
ReceiverNo
Magnet TypeRare Earth Magnets
StandardEN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
BatteriesLithium-Ion
Laser ColorGreen
Laser mW≤1mW Each Beam
Overall Length14 cm (5.5 Inch)
Overall Width4.8 Inch (12.2 cm)
Width3.4900 in
Weight1.8900 lbs
