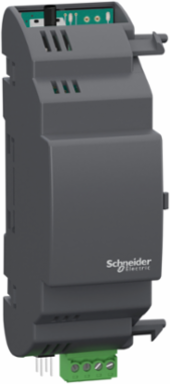

Schneider Electric TM171ALON LONWorks Communication Module, 78 kbits/s Transmission Rate, -10-55 C

MPN: TM171ALON
PPN: SCH-TM171ALON

$353.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This LONWorks Communication Module from Schneider Electric is engineered to enhance automation and control systems, delivering robust connectivity solutions. With a transmission rate of 78 kbits/s, it ensures efficient data exchange, making it suitable for a wide range of applications in both industrial and commercial environments. Designed to operate reliably within a temperature range of -10 to 55 C, this module offers flexibility and durability, ensuring seamless integration with existing systems for optimized performance in data acquisition and control tasks.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Italy, Sweden, United States

Communications & Management Attributes

Communication Port Protocol	LonWorks

Complementary Attributes

Integrated Connection Type	LON wire crimp - twisted pair

Important Information Attributes

Certificate Agency	EAC, CSA, CE, cURus
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Adjustment	pitch 3.81 mm
Local Signalling	1 LED (red) for service1 LED (green) for status
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon M171/M172
Supply	via base board M171P/M172P
Transmission Rate	78 kbits/s
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Electrical Connection	removable screw terminal block
Marking	CE
Product Or Component Type	communication module
Returnability	No
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)	160.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C, -10-55 °C
Product Compatibility	logic controller M171 performance, logic controller M172 performance
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Relative Humidity	10-90 % without condensation

Ambient Air Temperature For Storage	-20-85 °C, -20-85 °C
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
