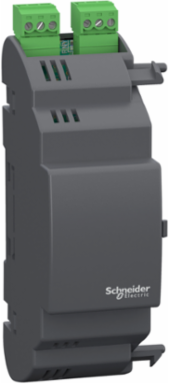

Schneider Electric TM171AMB Modicon M171 Performance Plug-in Modbus SL

Modicon M171 Performance Plug-in Modbus SL
  • MPN: TM171AMB
  • PPN: SCH-TM171AMB

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$88.49/ EA

Description

Modicon M171 Performance Plug-in Modbus SL

Specifications

Specifications

Communication Port Protocol
Modbus RTU || RS485
Product Or Component Type
communication module
Range Of ProductModicon M171

Complementary

Adjustment
pitch 3.81 mm
Physical Interface
90° insertion - 2.5-2.5 mm² cable
Supply
via base board EVD/EVC
Net Weight
0.077 kg
Integrated Connection TypeRS485 wire crimp - twisted pair
Electrical Connectionremovable screw terminal block
Product Compatibilitylogic controller M172 performance || logic controller M171 performance

Environment

Product Certifications
EAC || CSA || CE || cURus
Ambient Air Temperature For Storage
-20-85 °C
Marking
CE
Ambient Air Temperature For Operation-10-55 °C
Relative Humidity10-90 % without condensation
Ip Degree Of ProtectionIP20

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Rohs Exemption InformationYes
UpgradeabilityUpgradeable through digital modules and upgraded components
Reach RegulationReference contains Substances of Very High Concern above the threshold
