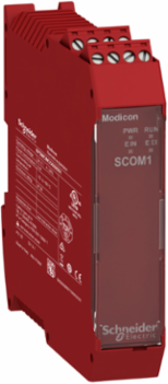

Schneider Electric XPSMCMCO0000S1 Modicon MCM RS485 Safe Communication Expansion Module, IP20, 1 Port

  • MPN: XPSMCMCO0000S1
  • PPN: SCH-XPSMCMCO0000S1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $632.80

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM RS485 Safe Communication Expansion Module, IP20, 1 Port

    Features

    • This Modicon MCM RS485 expansion module acts as a dedicated 1-way safe line transmitter or receiver, allowing automation engineers to connect remote I/O expansions up to 50 meters (164 feet) away via a single shielded cable. It provides an efficient way to distribute safety architecture across massive machine footprints while maintaining high-speed, deterministic safe communication.
    • The unit plugs directly onto standard Omega 35mm DIN rails and connects seamlessly to the main Modicon safety controller (such as the XPSMCMCP0802 or XPSMCMC10804) via a wireless backplane bus connector. This intelligent slide-and-lock configuration eliminates complex, time-consuming point-to-point point manual wiring inside your main control enclosure.
    • Outfitted with removable terminal blocks featuring captive screw clamps, this module allows for rapid, plug-and-play field servicing. If a replacement is ever needed, maintenance technicians can swap out the hardware chassis instantly without rewiring the field lines, minimizing production downtime and eliminating terminal wiring errors.
    • The front face features four dedicated status LEDs that provide instant, clear visual diagnostics for Power (PWR), Running state (RUN), internal device faults (E IN), and external network errors (E EX). This immediate feedback allows operators to quickly distinguish between a simple configuration mismatch and an external RS485 line break, speeding up troubleshooting cycles.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Italy, United States
    Depth114.5 mm

    Communications & Management Attributes

    Communication Port ProtocolRS485

    Complementary Attributes

    Maximum Cable Distance Between Devices50 m

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508can reach SILCL 3 IEC 62061
    Certificate AgencycULus, RCM, TÜV
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.47866606075528256
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.106589890664379
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Connector Type4 ways RS485
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enable communication and data exchange between safety controllers and fieldbus networks to 4W during 10 years at a 100% use rate.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh262.8
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal99 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8517690000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Local SignallingLED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external error
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Carbon Footprint Of The Distribution Phase [A4]0.07466476661982983, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.16714574664454726, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.22144640918272
    Local Publishable Date2025-11-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Consumption0.125 mA
    Electrical Connectionscrew terminal
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Number Of Port1
    Power Dissipation In W3 W
    Product Or Component Typesafe communication expansion module
    Range Of ProductModicon MCM
    Service Life20 year(s)
    Software Versionv6.2.5-6
    Total Lifecycle Carbon Footprint133 kg CO2 eq.
    Pep CodeENVPEP2606033_V1
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3-EN-2023 06 06
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
    Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
    Recyclability Potential In %21
    Width Nominal22.5 mm
    Connections - Terminals2 captive screw clamp terminals, removable terminal block
    Package Weight(Lbs)201.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2606033_V1
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3-EN-2023 06 06
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint133.04851287386674
    Eu Rohs DirectiveCompliant
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2606033_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesafe communication expansion module
    Range Of ProductModicon MCM

    ETIM

    ETIM 8EC001423
    ETIM 9EC001423
    Modicon MCM RS485 Safe Communication Expansion Module, IP20, 1 Port
