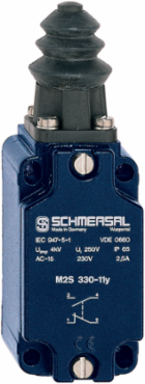

Schmersal 131149639 Light Position Switch, 40 mm x 120.5 mm, IP65, Plunger Actuating Element
- MPN: 131149639
- PPN: SCM-131149639
CAD
$281.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Position Switch, 40 mm x 120.5 mm, IP65, Plunger Actuating Element
Features
- with bellows to protect against heavy soiling
- Metal enclosure
- Long life

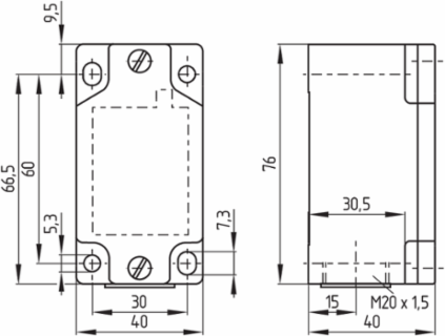

- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Material of the contacts, electrical
- Silver
Bounce duration, maximum1.5 ms
Note
- Note (General)
- Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch.
Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 120.5 mm
Width of sensor40 mm

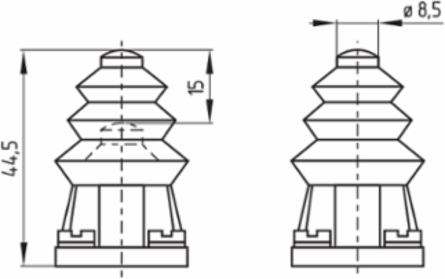

Diameter of the Plunger8.5 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Sphere
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialLight-alloy diecast, paint finish
Gross weight225 g
Ambient conditions
- Degree of protection
- IP65
- Restistance to shock
- 50 g / 6 ms
Ambient temperature-30 ... +90 °C
Mechanical data
- Actuating element
- Plunger
- Actuating speed, minimum
- 1 mm/min
Actuating force, minimum45 N
