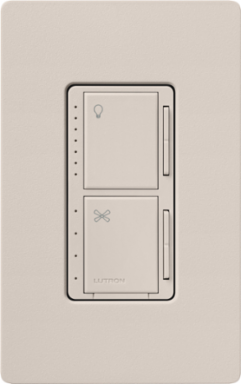

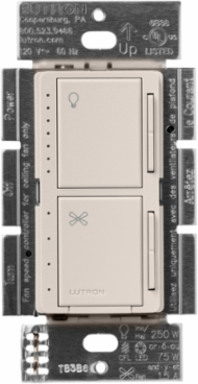

Lutron MACL-LFQ-TP Maestro Dual LED+ Dimmer & 4-Speed Fan Control 120V 1.5A Taupe
Lutron MACL-LFQ-TP Maestro Dual LED+ Dimmer & 4-Speed Fan Control 120V 1.5A Taupe
- MPN: MACL-LFQ-TP
- UPC: 784276239509
- PPN: LUT-MACL-LFQ-TP
- UNSPSC: 39122232
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$100.59/ EA
Description

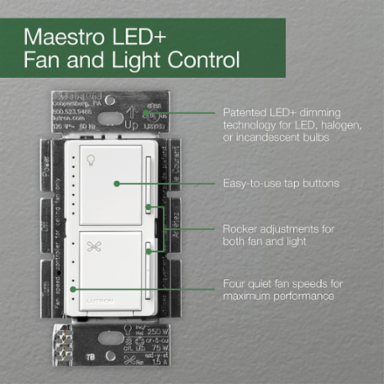

The Lutron Maestro Dual LED+ Dimmer and 4-Speed Fan Control helps you achieve the ideal comfort level for your home. It includes the most advanced technology for superior dimming and adjust the fan speed all from one wall control. The top section is a LED+ Dimmer that works with up to 75W of dimmable LEDs or up to 250W of Incandescent/Halogen bulbs. The bottom section is a 4-speed fan control for a single ceiling paddle fan up to 1.5A. Press the tap switch once to toggle the light or fan ON to a programmed preset, press again to toggle OFF; Double press the tap switch to turn light or fan ON to full intensity/speed. Use the raise/lower button next to the tap switch to dim/brighten lights or increase/decrease fan speed. This Fan/Light control is only available in single pole. Screw terminal and wire lead installation. No neutral or canopy module required. LED+ dimmer portion has easy low-end trim programming. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Maestro Dual Combination LED+ Dimmer and 4-Speed Fan Control; Satin Finish
- Rated for 1.5A Ceiling Paddle Fan and up to 75W of dimmable LEDs or 250W of Incandescent/Halogen bulbs
- For use with 1 ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole; Screw Terminal and Wire lead installation
- Separate wires for light and fan required; No canopy module required
- 4 quiet fan speeds: Low, Medium, Medium/High, High
- Simple button programming for low-end trim adjustment on LED+ dimmer
- Tap once to toggle light or fan ON/OFF, Double-tap to turn lights on to full intensity, or press & hold for delayed fade-to-off on the lights
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Dimmer (top) Tap on dimmer to preset light level; tap off
- Tap twice for full on
- Touch rocker to adjust light level
- Fan control (bottom) Tap on to preset fan speed; tap off
- Touch rocker to adjust speed
- 4-quiet fan speeds plus off provide enhanced comfort
- Designed to prevent motor hum
- For use with only one fan/light.
Specifications
Specifications
- Actuator
- Tapswitch
- Color
- Taupe
- Application
- Lighting and Fan Control
- Wattage
- 75 W dimmable LED/CFL or 250 W incandescent/halogen light
- Mounting
- Wallbox
- Type
- Digital preset fan/light control
- Size
- 4.69 x 2.94 in
- Finish
- Satin
- Decorative Color
- Taupe
Voltage Rating120 V
Number Of Poles1
Contact Rating1.5 A fan
Contact ConfigurationN-O
EnclosurePlastic
Amperage Rating1.5 A fan
ConnectionScrew terminal
Aesthetic FinishSatin
Family ColorGray
