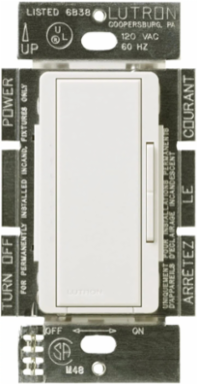

Lutron MALV-600-WH-CSA Maestro Dimmer - 600 VA Magnetic Low-Voltage, Glossy White Finish
Lutron MALV-600-WH-CSA Maestro Dimmer - 600 VA Magnetic Low-Voltage, Glossy White Finish
- MPN: MALV-600-WH-CSA
- UPC: 027557704229
- PPN: LUT-MALV-600-WH-CSA
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$112.39/ EA
Features
- High-tech "Smart Dimmer" with microprocessor technology for a standard designer wallplate opening
- Features a clean,flush,stylish appearance
- Special Features! Two taps on the switch brings lights on to full brightness; press and hold the switch to slowly fade lights to off over 10 seconds
- LED's indicate light level and glow softly as a locator light in the dark
- Multi-location dimming from up to 10 locations
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Controls 600 VA (450 W) magnetic low-voltage loads
- Provides true dimming from each location (with companion dimmers).
Specifications
Specifications
- Frequency Rating, Minimum
- 50 Hz
- Operating Temperature, Minimum
- 32 F
- Application
- Lighting Control
- Voltage Rating
- 120
- Wattage
- 450 W
- Family Color
- White
- Decorative Color
- White
- Connection Type
- Screw Terminal
- Insulation
- Plastic
- Finish
- Gloss
- Connection
- Screw terminal
- Mounting
- Wallbox
- Color
- White
Operating Temperature, Maximum104 F
Aesthetic FinishGlossy
TypeDigital fade dimmer, multi-location/single-pole
Environmental Conditions0 to 90% humidity, non-condensing
Number of Poles1
Switch TypeTapswitch
Face MaterialMetal;Plastic
Frequency Rating50 to 60 Hz
EnclosurePlastic
Size4.69 x 2.94;119 x 75 in;mm
ActuatorTapswitch
MaterialPlastic/Metal
Operating Temperature32 to 104 F
