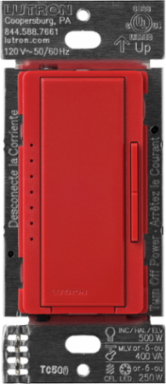

Lutron MA-PRO-HT Maestro PRO LED Dimmer Switch, 600W Max, Digital Fade, Neutral Optional
- MPN: MA-PRO-HT
- UPC: 784276261609
- PPN: LUT-MA-PRO-HT
- UNSPSC: 39122206
CAD
$95.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MSC-AD-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
- Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
- Single pole or multi-location dimming from up to 9 locations with companion dimmer (MSC-AD-xx sold-separately)
- Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select

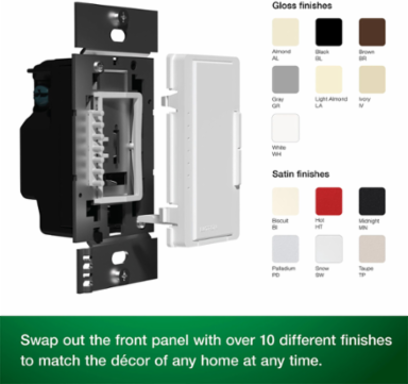

- Interchangeable color kits available for front panel (color change kit MK-D sold separately)

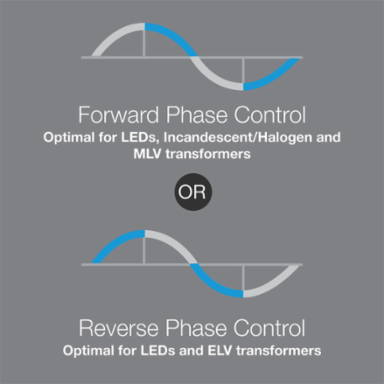

- Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
- Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored

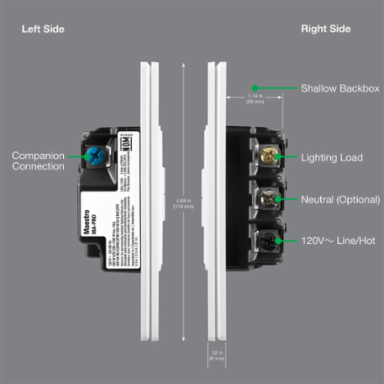

- Screw Terminals for easy install; Can be installed on either load or line side of circuit

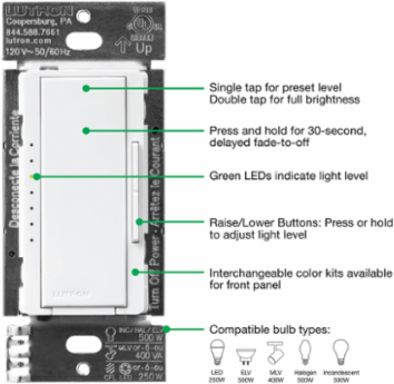

- While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state

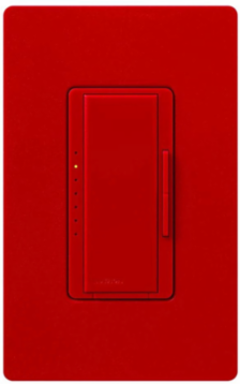

- Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
- Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Provides true dimming from each location (with companion dimmers)
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Satin
- Decorative Color
- Hot
- Family Color
- Red
- Number of Poles
- 1
- Operating Temperature, Minimum
- 32 F
- Type
- Digital fade dimmer, multi-location/3-way/single-pole
- Wattage
- 600 W
- Face Material
- Metal;Plastic
- Actuator
- Tapswitch
- Connection
- Screw terminal
- Finish
- Satin
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
Environmental Conditions0 to 90% humidity, non-condensing. Indoor use only.
Frequency Rating, Minimum50 Hz
Operating Temperature, Maximum104 F
Switch TypeTapswitch
Voltage Rating120
Connection TypeScrew Terminal
Frequency Rating50 to 60 Hz
ColorHot
EnclosurePlastic
InsulationPlastic
MountingWallbox
Size4.69 x 2.94;119 x 75 in;mm
