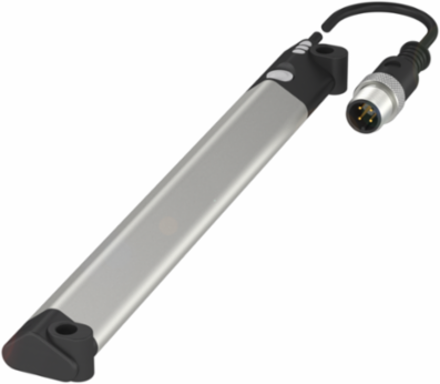

Balluff BMP 01-EL1PP21A-0128-00-P00,5-S4 Magnetic Field Positioning System 128 mm Measuring Range, IP67
- MPN: BMP 01-EL1PP21A-0128-00-P00,5-S4
- PPN: BAL-BMP000P
CAD
$466.89
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Field Positioning System 128 mm Measuring Range, IP67
Documentation & Downloads
Specifications
Additional
| Measuring Range | 128 mm |
|---|---|
| Repeat Accuracy | ± 100 µm |
| Non-linearity | ± 250 µm |
| Ambient Temperature | -25 to 85 °C |
| Dimension | 17.5 x 9.6 x 138 mm |
| Interface | IO-Link 1.1 |
| Approvals | CE, UKCA, cULus, IO-Link, WEEE |
| Operating Voltage | 15...30 VDC |
|---|---|
| Analog Output | Selectable 0-10 V / 4-20 mA |
| Resolution | 1 µm (IO-Link), 12 Bit (analog) |
| Connection | Cable with M12x1 Male 4-pin connector, 0.5 m PUR |
| Housing Material | PA 12; Aluminum |
| Ingress Protection | IP67 |
| Country of Origin | China |
