Balluff BMF 204K-PS-C-2A-SA2-S49-00,98 Magnetic field sensors for C-slot BMF 204K-PS-C-2A-SA2-S49-00,98
- MPN: BMF 204K-PS-C-2A-SA2-S49-00,98
- PPN: BAL-BMF00M3
CAD
$122.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

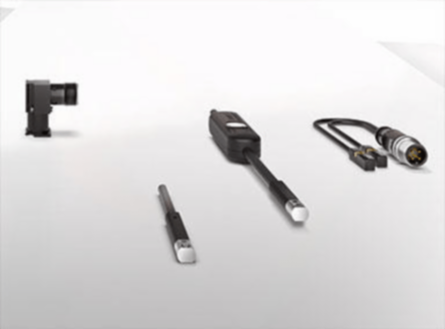

Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 16.8 x 2.9 x 4.5 mm
- Cable
- PUR, 0.98 m
- Housing material
- PA 12
- Switching frequency
- 7000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- cULus, CE, WEEE
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
