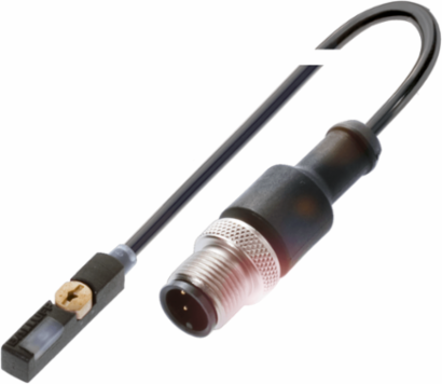

Balluff BMF 235K-PS-C-2A-SA93-S4-00,3 Magnetic field sensors for T-slot BMF 235K-PS-C-2A-SA93-S4-00,3
Balluff BMF 235K-PS-C-2A-SA93-S4-00,3 Magnetic field sensors for T-slot BMF 235K-PS-C-2A-SA93-S4-00,3
- MPN: BMF 235K-PS-C-2A-SA93-S4-00,3
- PPN: BAL-BMF00H5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.97/ EA
Description
Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.
Specifications
Specifications
- Dimension
- 23.5 x 5 x 5.5 mm
- Cable
- PUR with silicone tube, 0.3 m
- Mounting
- can be installed in T-slot from above
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM12x1-Male, 4-pin, A-coded
ApplicationPneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Housing materialPA 12
Switching frequency3000 Hz
Ambient temperature-25-85 °C
Approval/ConformitycULus, CE, WEEE
