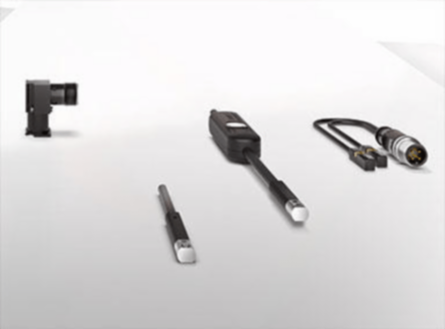

Balluff BMF 235K-PS-C-2A-SA2-S4-01 Magnetic field sensors for T-slot BMF 235K-PS-C-2A-SA2-S4-01
- MPN: BMF 235K-PS-C-2A-SA2-S4-01
- PPN: BAL-BMF00LJ
CAD
$145.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 23.5 x 5 x 5.5 mm
- Cable
- PUR, 1 m
- Housing material
- PA 12
- Switching frequency
- 3000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- cULus, CE, WEEE
ConnectionM12x1-Male, 4-pin, A-coded
Mountingcan be installed in T-slot from above
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
