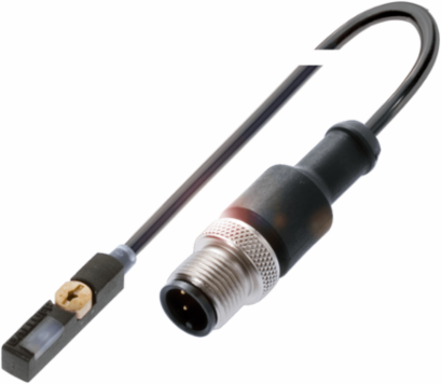

Balluff BMF 235K-PS-C-2A-SA4-S4-00,3 Magnetic field sensors for T-slot BMF 235K-PS-C-2A-SA4-S4-00,3
- MPN: BMF 235K-PS-C-2A-SA4-S4-00,3
- PPN: BAL-BMF00FY
CAD
$55.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 23.5 x 5 x 5.5 mm
- Cable
- PUR with cable labeling grommet, 0.3 m
- Mounting
- can be installed in T-slot from above
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM12x1-Male, 4-pin, A-coded
ApplicationPneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Housing materialPA 12
Switching frequency3000 Hz
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
