Balluff BMF 235K-PS-C-2A-SA5-S4-00,3 Magnetic field sensors for T-slot BMF 235K-PS-C-2A-SA5-S4-00,3
- MPN: BMF 235K-PS-C-2A-SA5-S4-00,3
- PPN: BAL-BMF00MH
CAD
$194.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

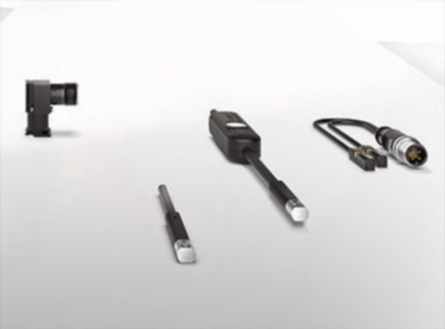

Our magnetic field sensors for T-slots detect the piston position without contact through the cylinder walls. Features: can be mounted directly into the slot, firm grip, can be mounted flush for space-critical applications, can be used for cylinders and grippers with strong or weak magnets, bright LEDs. Extremely short configurations as well as sensors with metal housings or magnetic field-sensitive electronics are available.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 23.5 x 5 x 5.5 mm |
|---|---|
| Cable | TPE, 0.30 m |
| Switching output | PNP Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Connection | M12x1-Male, 3-pin, A-coded |
|---|---|
| Housing material | PA 12 |
| Switching frequency | 3000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
