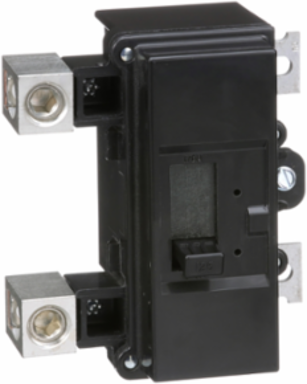

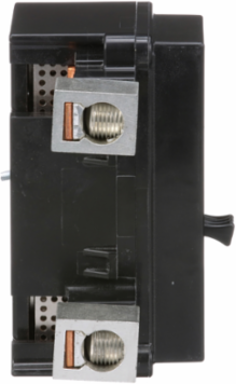

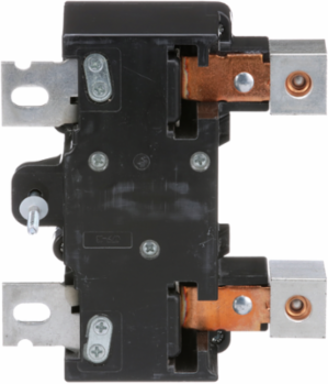

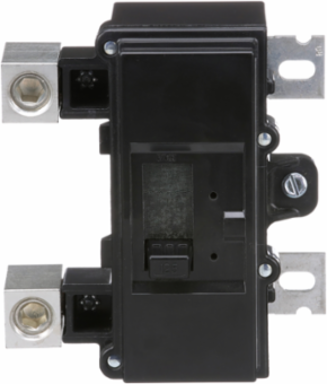

Square D QOM2125VH Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on
Square D QOM2125VH Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on
- MPN: QOM2125VH
- UPC: 785901021971
- PPN: SCH-QOM2125VH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$577.18/ EA
Description
Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on
Specifications
Complementary Attributes
- Rated Current
- 125 A
- Line Rated Current
- 125 A
Ue Rated Operational Voltage120/240 V AC, 120 V AC
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Electrical Connection
- lugs
- Mounting Mode
- bolt-on
- Product Destination
- miniature circuit-breaker QO, miniature circuit-breaker Homeline, QO load center, Homeline load center
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.1630289796
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.7813273469
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- N
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Circuit Breakers
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- primary main breaker
- Device Short Name
- QOM2
- Phase
- 1 phase
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Pep Code
- ENVPEP2212007EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Pn
- 1
- Width Nominal
- 129 mm
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Load Center Typemain breaker
Poles Description2P
Product Or Component Typeminiature circuit-breaker
Carbon Footprint Of The Distribution Phase A40.4090293878, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0063691437, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6248 kg CO2 eq., 248.4799930762
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
H And D SubrangeRESI
H And D Enrichment FunctionMCB
H And D Enrichment Class 4MCB UL 2P
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg GaugeAWG 4...300 kcmil copper or aluminium
Circuit Breaker Typestandard
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Warranty In Months18
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/210 V AC and rated current 200 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 2 poles& 10- Rated breaking capacity 22,000 A
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Offer Owner Code190788
Height Nominal142 mm
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]94.38
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 253.8397479342
- Environmental Disclosure
- ENVPEP2212007EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212007EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
- Range Of Product
- QO
Phase1 phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Mexico
Depth91 mm
