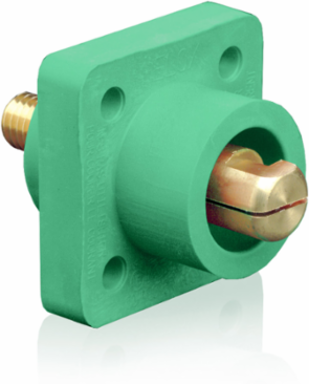

Leviton 18R21-UG 18 Series Male Receptacle, 90-Degree, #2 - 4/0 AWG, 0.75" Threaded Stud

18 Series Male Receptacle, 90-Degree, #2 - 4/0 AWG, 0.75" Threaded Stud

Leviton 18R21-UG 18 Series Male Receptacle, 90-Degree, #2 - 4/0 AWG, 0.75" Threaded Stud

MPN: 18R21-UG
UPC: 078477719695
PPN: LEV-18R21-UG

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$89.57/ EA

Loading add to cart quantity...

Description

18 Series Ball Nose Cam-Type Male Panel Mount Receptacle, 90-Degree, #2 - 4/0 AWG, 0.75" Threaded Stud, 400 Amp Max, 600VAC/DC, Green

Features

Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Specifications

Standards and Certifications

CSA Certified: File 152105

UL ListedFile E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating

Material Specifications

Contacts: Brass

Mechanical Specifications

Cable Range: 2-4/0 AWG

Gender: Male

Connection TypeThreaded Stud

Specifications

Country of Origin: Mexico

RoHS CompliantTrue

Product Features

Color: Green

Electrical Specifications

Max. Amperage: 400 Amp

Max. Voltage600 Volt
