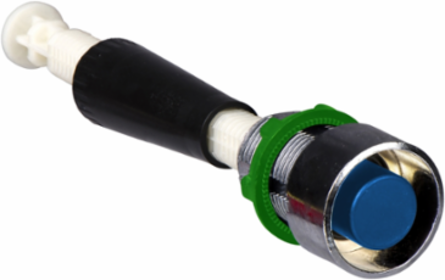

Schneider Electric XB4BA961 Manual Overload Reset Push Button, 22 mm, IP66, 30-130 mm Actuation Distance

MPN: XB4BA961
PPN: SCH-XB4BA961

$39.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This manual overload reset push button from Schneider Electric is designed to enhance operator safety and control within various automation and control applications. With a robust 22 mm size and an IP66 rating, it stands up to challenging environments, ensuring reliable performance even in the face of dust and moisture. The actuation distance of 30-130 mm provides flexibility in installation, making it suitable for a range of electrical systems. This reliable push button is an essential component for effective operational management in control panels and machinery, facilitating seamless and safe reset functionality.
