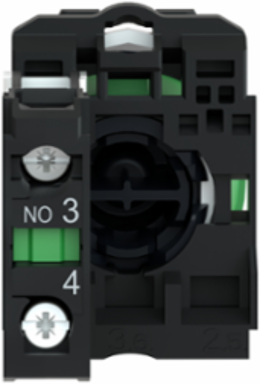

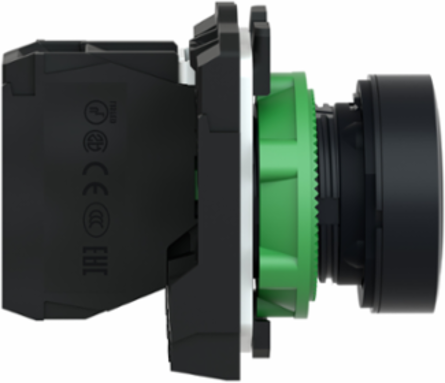

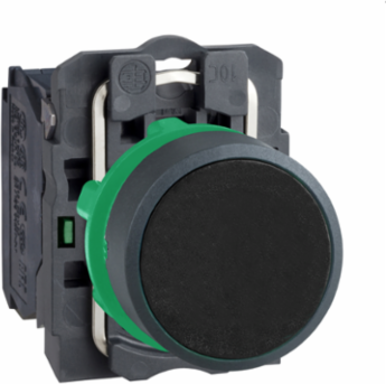

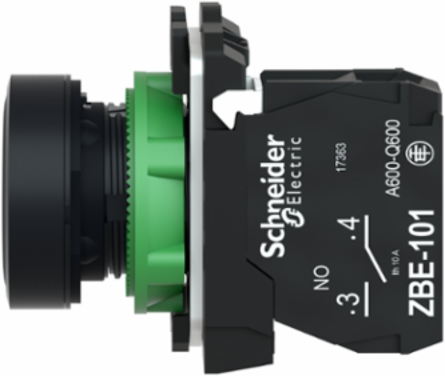

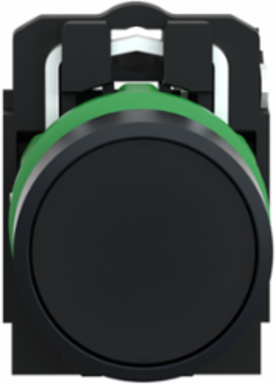

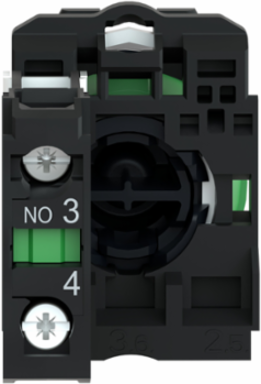

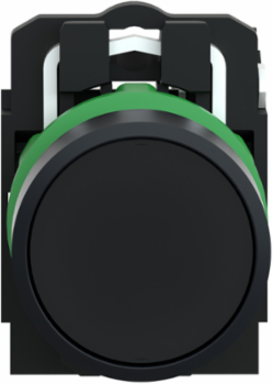

Schneider Electric XB5AA21 Harmony XB5 Plastic Push Button 22mm Spring Return 1NO IP66
- MPN: XB5AA21
- PPN: SCH-XB5AA21
CAD
$36.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|
| Depth | 52 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | dark grey plastic, plastic, dark grey plastic |
| Electrical Durability | 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | DNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.07126589388316908, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.29222504482492223 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2303008EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 14 % |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO |
| Device Short Name | XB5 |
| Gcr Bridge | XB5AACUST01 |
| Mechanical Durability | 10000000 cycles |
| Operating Force | 3.8 N NO changing electrical state |
| Operator Profile | black flush, unmarked |
| Positive Opening | without |
| Product Or Component Type | push-button |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Contacts Composition | 1 NO |
| Pep Code | "ENVPEP2303008EN" |
| Pep Verification Date | 2024-03-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; APAC |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; APAC |
| Width Nominal | 30 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | black |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 37.000 g |
| Take-back | No |
| Customs Code | 8536509065 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | no, 1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Operator Profile 1 Cap Operator Or Lens Color | black |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.013767481154870852, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.01039542107849661 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.043112281690140856 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 13 % |
| Compatibility Code | XB5 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | plastic |
| Head Type | standard |

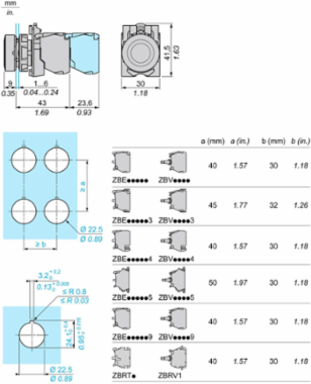

| Mounting Diameter | 22.5 mm |
| Operating Travel | 2.6 mm NO changing electrical state)4.3 mm total travel) |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Operator Profile 1 Marking | unmarked |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; APAC |
| Height Nominal | 42 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2303008EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | "ENVPEP2303008EN" |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Recycled Metal Content At Cr Level | 13 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.43076612263159964 |
| Environmental Disclosure | "ENVPEP2303008EN" |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-03-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
