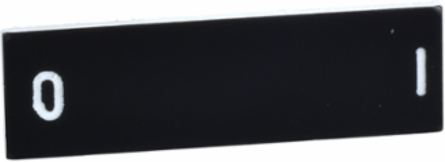

Schneider Electric ZBY02178 Harmony XB4/XB5 Marked Legend, Black, 8 x 27 mm, O-I Marking
- MPN: ZBY02178
- PPN: SCH-ZBY02178
CAD
$0.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZBY marked legend has black background and is marked with "O-I" lettering. It is compatible with Harmony XB4 and XB5 push buttons and pilot lights. This legend provides clear labelling for your push buttons. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 22mm Harmony control and signaling units. It provides clear and resilient symbol marking on the label, with high contrast.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico
Important Information Attributes
- Customizable
- 0, no
- Range Of Product
- Harmony XB5, Harmony XB4
- X C Menu
- selector switch, illum select switch
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0006538181, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003535953, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Label Dimensions
- 8 x 27 mm
- Material
- plastic
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- User Language
- International
- Pep Code
- ENVPEP2506048EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Type
- legend
- Package Weight(Lbs)
- 0.900 g
- Warranty (In Months)
- 18
Main Groupselector switch, illum select switch
Operator Pos Information2 positions 90°
Accessory / Separate Part Destinationlegend holder 30 x 40 mm, for standard head
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0157565234
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.033927115
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Markingwhite O-I 1 black side, 1 red side
Operator Position Information2 positions 90°
Product Or Component Typemarked legend
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Marking 1 MarkingO-I
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights. This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with Harmony emergency stop or switching off unit. It provides clear and resilient symbol marking on the label, with high contrast.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorymarking accessories
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3919905060
Environment Attributes Main
- Product Compatibility
- ZBZ34, ZBZ32
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506048EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506048EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.0506910519
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XB5, Harmony XB4
Product Or Component Typemarked legend
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
