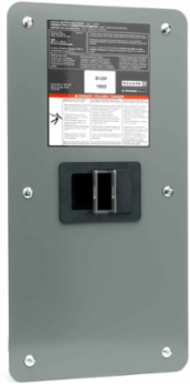

Square D B125F Circuit Breaker Enclosure, PowerPacT B, 15-100A, NEMA 1, 19.5 Inch Height, Flush Mount
- MPN: B125F
- UPC: 785901280507
- PPN: SCH-B125F
CAD
$624.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact B circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 2 or 3 pole PowerPacT B breakers that have a current rating of 15 to 125A. This enclosure is NEMA 1 rated enclosure and is flush mounted. The enclosure has a knockout that allows access to breaker front controls without opening enclosure. The short circuit current rating of the enclosure is equal to the rating of the circuit breaker installed unless otherwise noted. The device has a height of 19.5 inch, width of 9.88 inch and Depth of 4.13 inch. It is UL 489 Listed and CSA certified. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth105 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- circuit-breaker B 2P or 3P 15-100 A, circuit-breaker B 2P or 3P 110-125 A, circuit-breaker B 2P 15-30 A
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 7 kg CO2 eq., 7.08234096393486
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 29 kg CO2 eq., 28.91250883597107
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Enclosure Material
- steel
- Halogen Free Status
- Halogen free plastic parts product
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1408006EN
- Pep Verification Date
- 2025-09-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 495 mm
- Certificate Agency
- UL Listed
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.4304885837457595, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.008302945459224288, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Circuit Breaker TypeB-Frame
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint37 kg CO2 eq.
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %95
Width Nominal251 mm
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 37.43364132911091
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1408006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1408006EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
