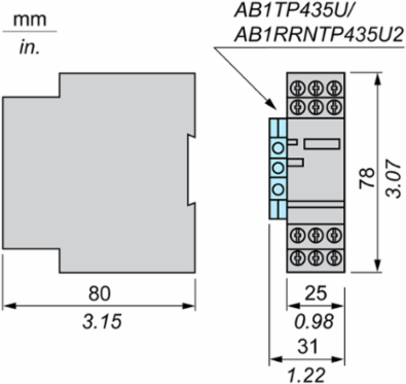

Schneider Electric RMPT20BD Harmony Analog Temperature Transmitter, Pt100 Probes, -100...100 C
- MPN: RMPT20BD
- PPN: SCH-RMPT20BD
CAD
$216.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Analog Temperature Transmitter, Pt100 Probes, -100...100 C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Analogue Output Current2 | -30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken, 22-30 mA no input or input wire broken |
| Current Consumption | <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output |
| Measurement Error | +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference)+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference) |
| Repeat Accuracy | +/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C |
| Certificate Agency | GL, CSA, UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.24772669157832428, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0009126232522786244 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 19 kg CO2 eq., 19.105800523323484 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2511011EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Electromagnetic Compatibility | electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Local Signalling | LED (green) for power ON |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony Analog |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Temperature Coefficient | 150 ppm/°C |
| Total Lifecycle Carbon Footprint | 24 kg CO2 eq. |
| Pep Code | ENVPEP2511011EN |
| Pep Verification Date | 2025-11-11 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; China, CN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Global, GLO |
| Recyclability Potential In % | 62 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Analogue Output Voltage2 | -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken |
| Fire Resistance | 850 °C IEC 60695-2-1, 850 °C UL |
| Protection Type | reverse polarity protection on output, overvoltage protection on output (+/- 30 V), reverse polarity protection on power supply, short-circuit protection on output |
| Safety Reliability Data | MTTFd = 32.9 years, B10d = 30437 |
| Disturbance Radiated/Conducted | CISPR 11, CISPR 22 group 1 - class B |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1672254518300461, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 5 kg CO2 eq., 4.696304851035895 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | clip-on (35 mm symmetrical DIN rail)fixed (mounting plate) |
| Marking | CE |
| Product Or Component Type | converter for Universal Pt100 probes |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Tightening Torque | 0.6-1.1 N.m |
| Vibration Resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This voltage/current converter is part of the harmony analog range. It converts both AC and DC electrical power signals and operates on a 24 V DC supply. The device also extends the connection distance between a sensor and the measurement acquisition system and providing greater installation flexibility. Complies with IEC standards UL and CSA certified which making it suitable for universal applications. Designed for quick, intuitive configuration and it offers ease of use with fixed input and output values aligned with market requirements. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 39.42 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| [Ui] Rated Insulation Voltage | 2000 V |
| Package Weight(Lbs) | 108.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C mounting side by side, 0-60 °C 2 cm spacing |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 24.21797014102003 |
| Environmental Disclosure | ENVPEP2511011EN |
| Ip Degree Of Protection | IP20 terminal block)IP50 housing) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2511011EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2511011EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-11 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | converter for Universal Pt100 probes |
|---|
| Range Of Product | Harmony Analog |
|---|
ETIM
| ETIM 8 | EC002653 |
|---|
| ETIM 9 | EC002653 |
|---|
Output Attributes
| Analogue Output Type | current 0...20 mA, current 4...20 mAvoltage 0...10 V |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | RTD - 100...100 °C/- 148...212 °F Pt 100 2, 3 or 4 wires |
|---|
