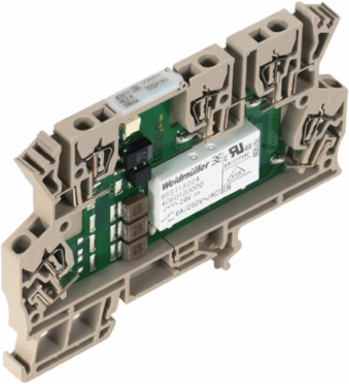

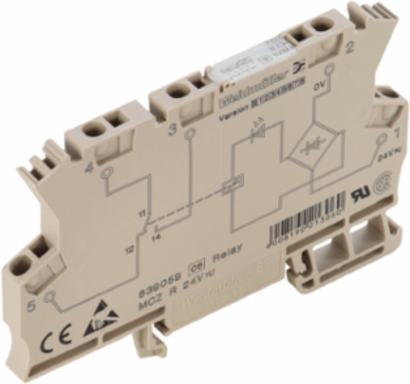

Weidmuller 8713890000 MCZ Series 24V DC Relay Module, 1 CO Contact, 6 A Current, 6.1 mm Width
- MPN: 8713890000
- PPN: WDM-8713890000
CAD
$33.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
MCZ-SERIES TRAK, Relay module, Number of contacts: 1 CO contact AgSnO, Rated control voltage: 24 V DC +25 % / -30 %, Continuous current: 6 A, Tension-clamp connection
Documentation & Downloads
Specifications
General Data
- Version
- for railway applications
- Test button
- No
- Open sides
- right
- UL 94 flammability rating
- V-0
RailTS 35
Mechanical switch position indicatorNo
Colourbeige
Approvals
- Approvals
- CE, EAC
ROHSConform

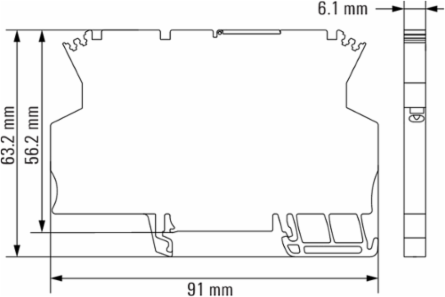

Dimensions And Weights
- Width
- 6.1 mm
- Height
- 91 mm
- Depth
- 63.2 mm
- Net weight
- 27.2 g
Width (inches)0.24 inch
Height (inches)3.583 inch
Depth (inches)2.488 inch
Connection Data
- Wire connection method
- Tension-clamp connection
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 1.5 mm²
- Wire connection cross section AWG, max.
- AWG 16
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
Stripping length, rated connection8 mm
Clamping range, min.0.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Blade size0.6 x 3.5 mm
Contact Data
- Contact type
- 1 CO contact (AgSnO)
Mechanical service life10 x 106 switching cycles
Input
- Rated control voltage
- 24 V DC + 25 % / - 30 %
- Power rating
- 195...500 mW
- Status indicator
- Green LED
- Max. reset time after voltage interruption
- 10 ms
Rated current DC11.5...16.5 mA
Pull-in/drop-out voltage, typ.14 V / 3 V DC
Protective circuitFree-wheeling diode, Varistor, Reverse polarity protection
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
UNSPSC30-21-19-17
Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- Inrush current
- 6 A

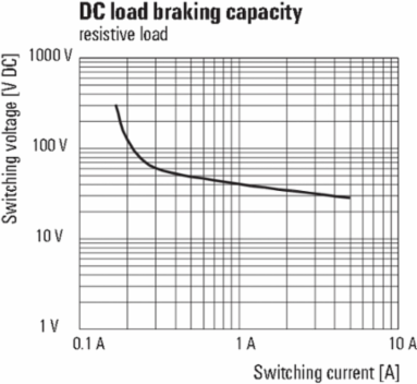

- DC switching capacity (resistive), max.
- 120 W @ 24 V
- Switch-off delay
- < 50 ms
- Max. switching frequency at rated load
- 0.1 Hz
Max. switching voltage, AC250 V
Continuous current6 A
AC switching capacity (resistive), max.1500 VA
Switch-on delay< 11 ms
Min. switching power100 mA @ 12 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 4 kVeff / 1 s
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Impulse withstand voltage4 kV (1.2/50 µs)
Temperatures
- Humidity
- 95 % for 30 days, minimal condensation to EN 50155
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Note: room temperature (service)
- +85 °C for 10 minutes

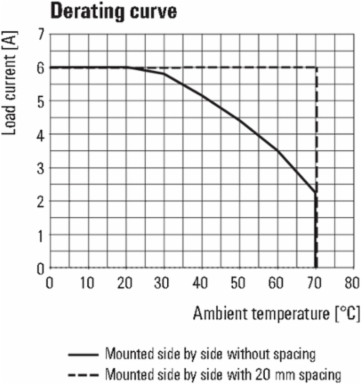

Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178, DIN EN 50155
