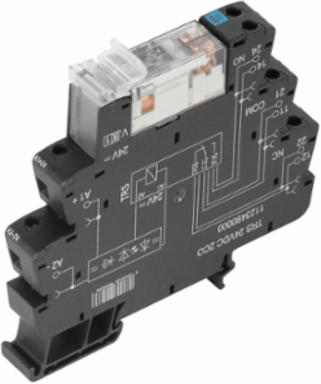

Weidmuller 1123490000 Relay Module 24 V DC, 2 CO Contacts, 8 A, 12.8 mm Wide
- MPN: 1123490000
- PPN: WDM-1123490000
CAD
$27.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TERMSERIES, Relay module, Number of contacts: 2 CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 8 A, Screw connection
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| Mechanical switch position indicator | No |
| UL 94 flammability rating | V-0 |
| Test button | No |
|---|---|
| Colour | black |
Approvals
| Approvals | CE, CULUS, DNV GL, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|

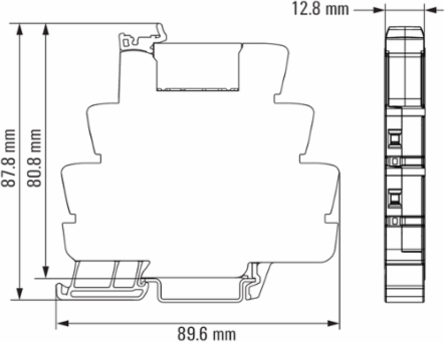

Dimensions And Weights
| Width | 12.8 mm |
|---|---|
| Height | 89.6 mm |
| Depth | 87.8 mm |
| Net weight | 56 g |
| Width (inches) | 0.504 inch |
|---|---|
| Height (inches) | 3.528 inch |
| Depth (inches) | 3.457 inch |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, max. | 0.4 Nm |
| Clamping range, min. | 0.14 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.25 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Blade size | size PH0 |
| Stripping length, rated connection | 8 mm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
| Twin wire-end ferrules, max. | 1 mm² |
| Gauge to IEC 60947-1 | A1, B1 |
Rated Data Ul
| Ambient temperature (operational), max. | 60 °C |
|---|---|
| Connection cross-section AWG, max. | AWG 14 |
| Tightening torque, max. | 0.4 Nm |
| Connection cross-section AWG, min. | AWG 26 |
|---|---|
| Type of conductor | rigid copper conductor, flexible copper conductor |
| Pollution severity level | 2 |
Contact Data
| Contact type | 2 CO contact (AgNi) |
|---|

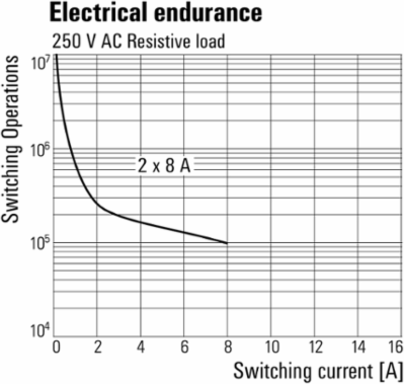

| Mechanical service life | 30 x 106 switching cycles |
|---|
Input
| Rated control voltage | 24 V DC ± 20 % |
|---|---|
| Power rating | 495 mW |
| Pull-in/drop-out current, typ. | 14 mA / 2 mA DC |

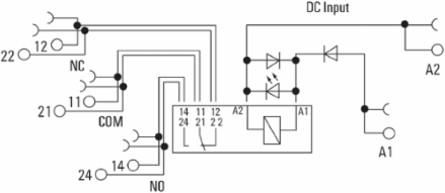

| Protective circuit | Free-wheeling diode, Reverse polarity protection |
| Coil voltage of the replacement relay | 24 V DC |
| Rated current DC | 20.5 mA |
|---|---|
| Pull-in/drop-out voltage, typ. | 17 V / 3 V DC |
| Status indicator | Green LED |
| Coil voltage of the replacement relay deviating from the rated control voltage | No |
Classifications
| ETIM 6.0 | EC001437 |
|---|---|
| eClass 9.0 | 27-37-16-01 |
| eClass 10.0 | 27-37-16-01 |
| ETIM 7.0 | EC001437 |
|---|---|
| eClass 9.1 | 27-37-16-01 |
Output
| Rated switching voltage | 250 V AC |
|---|---|
| Max. switching voltage, DC | 250 V |
| Inrush current | 15 A / 4 s |

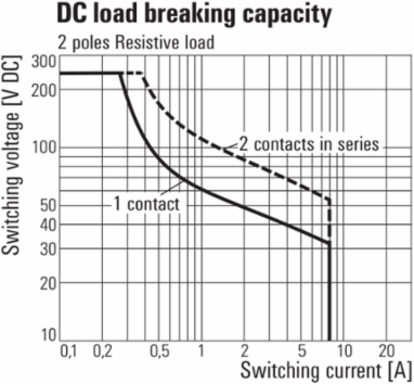

| DC switching capacity (resistive), max. | 192 W @ 24 V |
| Switch-off delay | < 18 ms |
| Max. switching frequency at rated load | 0.1 Hz |
| Max. switching voltage, AC | 250 V |
|---|---|
| Continuous current | 8 A |
| AC switching capacity (resistive), max. | 2000 VA |
| Switch-on delay | ≤ 6 ms |
| Min. switching power | 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Pollution severity | 2 |
| Dielectric strength, Input/Output | 1.2 kVeff / 5 s |
| Dielectric strength of neighbouring contacts | 2.5 kVeff |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Surge voltage category | III |
|---|---|
| Protection degree | IP20 |
| Creepage and clearance distance input – output | ≥ 5.5 mm |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
Temperatures
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
Further Details Of Approvals / Standards
| Standards | EN 50178, EN 55011, EN 61000-6-1, 2, 4 |
|---|---|
| Certificate no. (cULus) | E141197 |
| Certificate No. (DNVGL) | TAA00001E5 |
|---|
