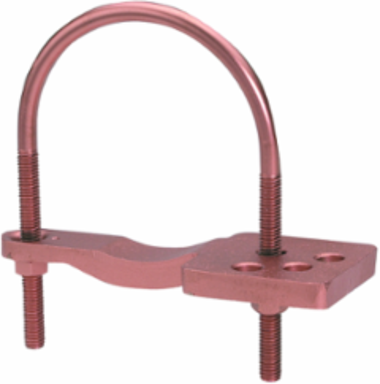

Burndy GAR3908TC Rod or Tube Grounding Clamp with Mounting Pad, 10 Inch Pipe, Copper Alloy

MPN: GAR3908TC
UPC: 781810001615
PPN: BUR-261016

$1232.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mechanical Grounding Connector, For 2 Hole Lug to Water Pipe or Rod, 10" Pipe, 3/8" Stud.

Documentation & Downloads

Specifications

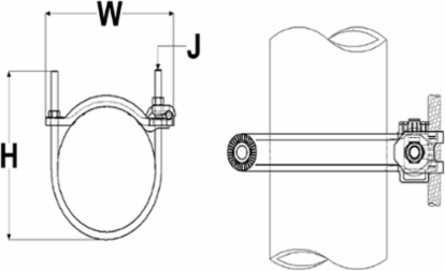

Dimensions

Dimension - Bolt Size fraction	3/8
Dimension - Length Overall inch	3.63 in
Dimension - Thread Size	3/8-16
Dimension - Width inch	13.25 in

Dimension - Height inch	12.00 in
Dimension - Outside Diameter inch	10.75 in
Dimension - Threads per inch	16
Dimension - Width mm	337 mm

Certifications and Compliance

Certification - CSA Approved	No
Certification - UL Listed Direct Burial	Yes
Certification - cULus	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Certification - ETL	No
Certification - UL Recognized	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	CM

Conductor Related

Conductor - Copper Tube EH Size	10

Conductor - Pipe or Round Tube Size	10 in

General

Application	For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes
Material	Copper Alloy
Physical Attribute - Number of Holes	3
Plated	N
Sub Brand	MECHANICAL CONNECTOR
U Bolt Type	1029
UPC 12 Digit	7818100016155

Installation Torque Recommended in-lb	240 lb-in
Material - Hardware	DURIUM™ Silicon Bronze
Physical Attribute - Pad Configuration	3.63 x 2.67 - 3 Holes
Plating Type	Unplated
Type	Rod or Tube Clamp with Mounting Pad
UPC	781810001615
