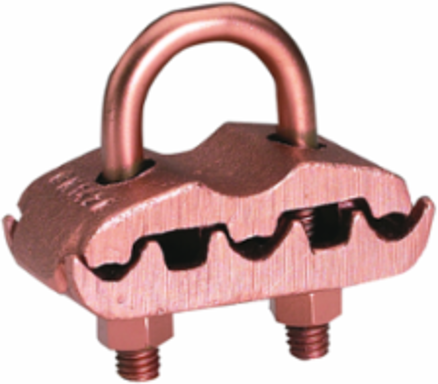

Burndy GK1126 Copper Alloy Grounding Clamp for 3 Cables to 1/2 Inch Rod, UL Listed, 2.75 Inch Width
- MPN: GK1126
- UPC: 781810233672
- PPN: BUR-02001075
CAD
$403.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Grounding Clamp, 3 Cables to Rod or Pipe, 1/2" Rod Dia, 1/4" IPS(A), #4 Sol - 2/0 Str AWG Cu(AA)
Documentation & Downloads
Specifications
Additional
| Conductor - Rod Size | 1/2 in |
|---|---|
| Installation Torque Recommended | 240 lbs/in |
| Standards - Industry Standards Met | UL467 |

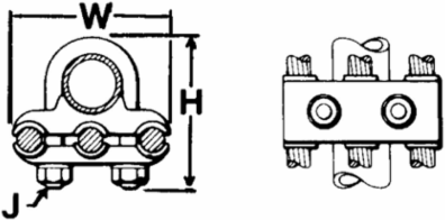

| Dimension - Width | 2.75 in |
| Dimension - Height | 2.50 in |
| Material | Copper Alloy, Cast |
| Material Type - Screw | DURIUM11 Silicon Bronze |
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| Certification - CSA Approved | No |
| Conductor Size | #4 Solid AWG - 2/0 Stranded AWG Copper |
|---|---|
| Type | Three Cables to Rod or Tube |
| Cable Quantity | 3 |
| Dimension - Length | 1.50 in |
| Bolt Size | 3/8 in |
| Plating Type | Unplated |
| UL Listed | Yes |
| Standards - RoHS Compliance Status | EX |
| Certification - ETL | No |
