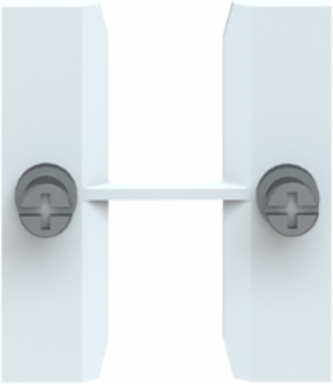

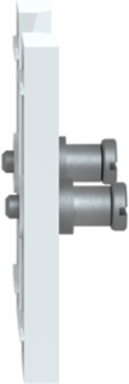

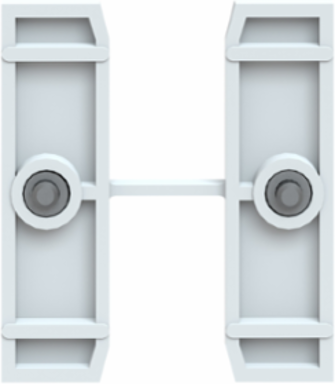

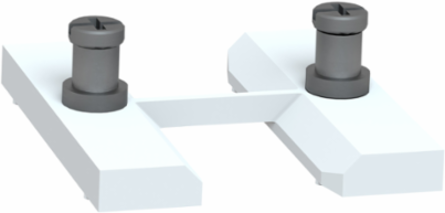

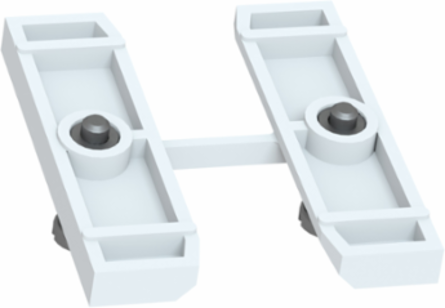

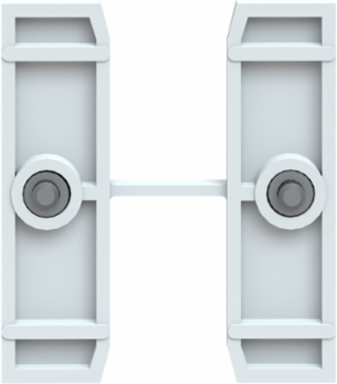

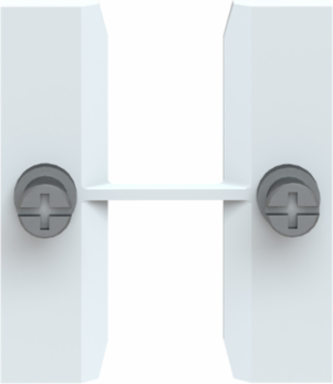

Schneider Electric XACA009 Mechanical Interlock for 2 Operators - Pendant Control Station Accessory
- MPN: XACA009
- PPN: SCH-XACA009
CAD
$7.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

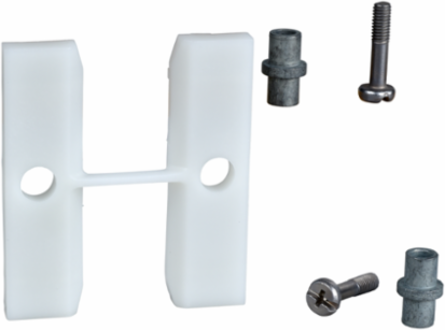

This mechanical interlock is a separate component for double insulated, XACA pendant control station. It enables the mechanical interlock between 2 operators. It is fitted with 4 fixing screws.
Features
- The Schneider Electric XACA009 is a high-precision mechanical interlock designed to physically block two adjacent buttons from being pressed at once. This fail-safe hardware solution is critical for hoist and crane applications, ensuring that "Up/Down" or "Left/Right" commands cannot conflict, which protects your motor windings from burnout and prevents catastrophic equipment failure.
- XAC Pendant Compatibility: Will this fit my existing Harmony series station? Specifically engineered for the Schneider Harmony XAC medium-duty pendant stations, this interlock integrates seamlessly between the internal contact blocks. Because it is an OEM-spec component, it maintains the structural integrity and IP65/IP66 wash-down ratings of your enclosure, allowing for a quick, "drop-in" installation without the need for custom modifications.
- By providing a physical barrier against accidental dual-triggering, the XACA009 acts as a primary safety layer for overhead material handling. It eliminates human error during high-stress maneuvers, ensuring your facility remains compliant with rigorous safety standards while minimizing the risk of load drops or mechanical jerky motions caused by opposing electrical signals.
- Built with professional-grade materials, this interlock is tested for millions of mechanical cycles, mirroring the longevity of the Harmony XAC line. This extreme durability means fewer maintenance intervals and less downtime for your lifting equipment, even in demanding environments like automotive assembly lines or metal fabrication shops.
